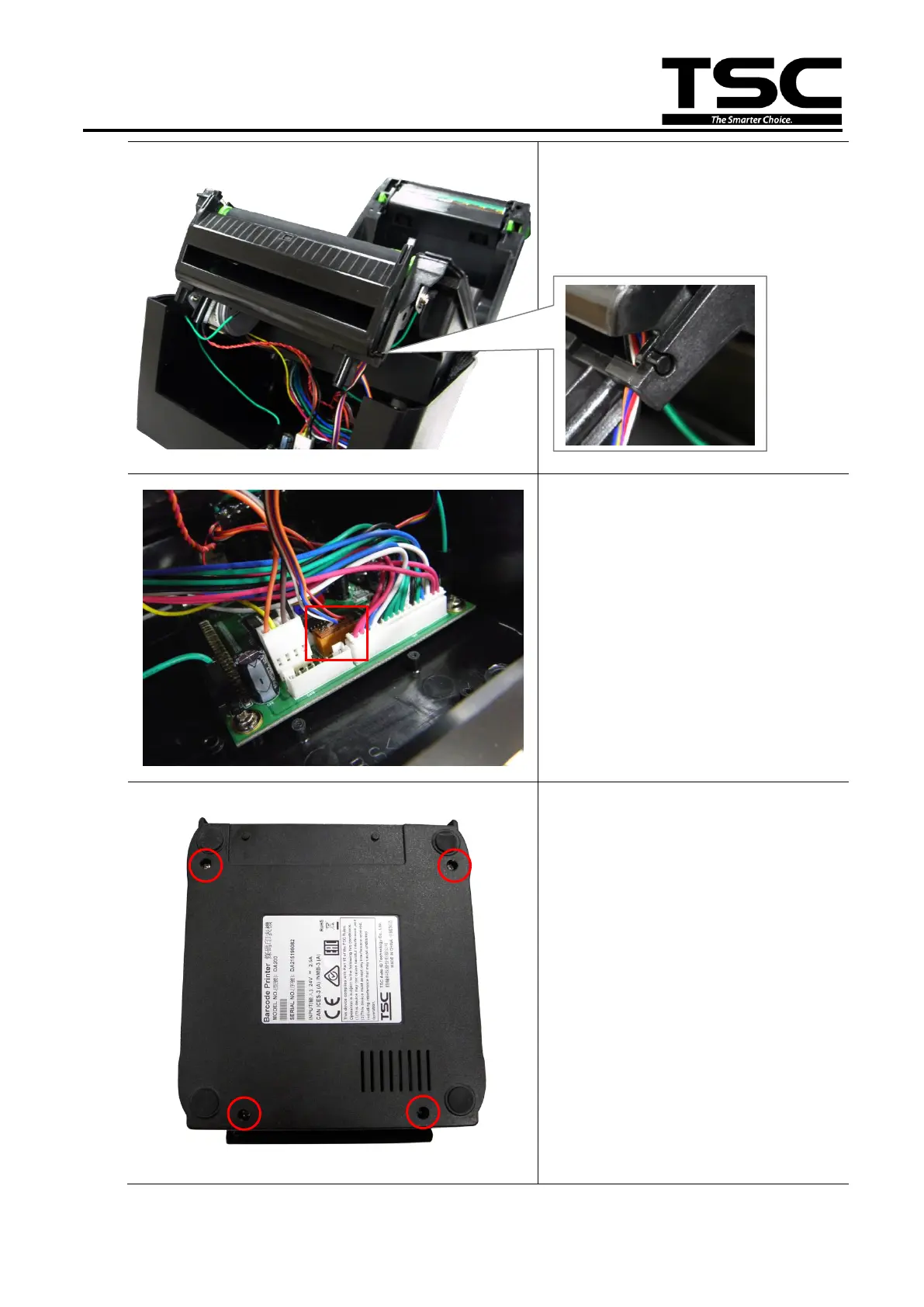

5. Embed the tenons into the
both sides mortise of lower
inner cover and close the
peel-off cover.
6. Connect the peel-off module
harness connector to the
5-pin white socket on the
printer main board.
7. Fasten 4 screws back on the
printer lower cover.

TSC DA200 Series Specifications

General

Resolution	203 dpi
Max Print Width	108 mm (4.25")
Max Print Length	2, 794 mm (110")
Processor	32-bit RISC CPU
Media Roll Diameter	127 mm (5") OD
Ribbon Core Diameter	25.4 mm (1")
Print Method	Thermal Transfer/Direct Thermal
Max Print Speed	6 ips (inches per second)
Memory	8 MB Flash, 8 MB SDRAM
Interface	USB 2.0
Media Sensor	Reflective, Transmissive
Media Handling	die-cut, fan-fold, continuous
Media Type	Gap, Black mark, Notch, Continuous
Media Width	20 mm ~ 112 mm (0.79" ~ 4.41")
Media Thickness	0.06 mm ~ 0.19 mm
Ribbon Width	30 to 104 mm
Ribbon Length	300 m (984 feet)
Power Supply	External universal switching power supply
