TSC DA200 Series Service Manual

DA200/ DA300
Bar Code Printer Service Manual
6
5
10/100 Mbps Ethernet bridge connector
6
UART bridge connector
7
Stepping motor connector
8

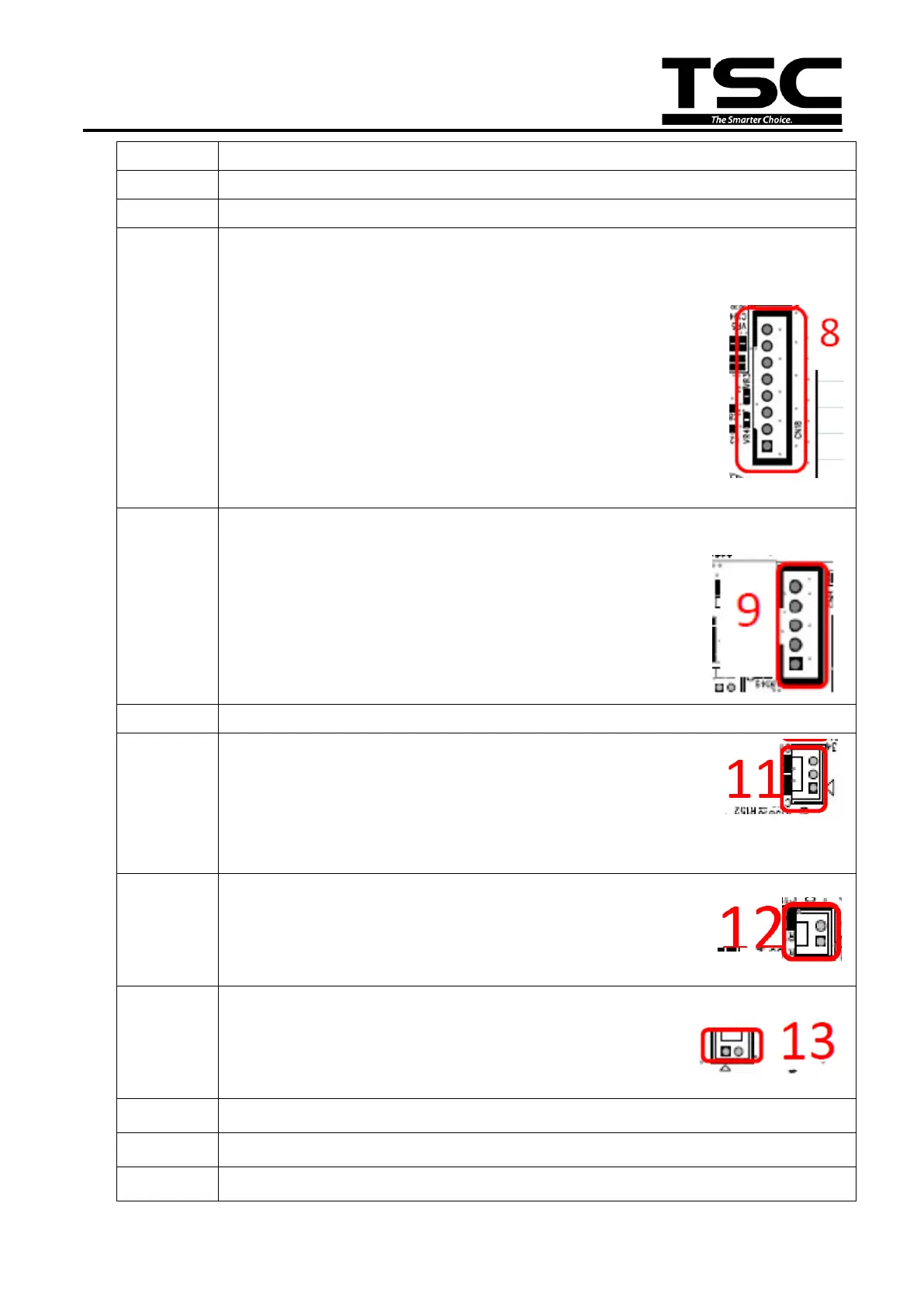

Cutter connector
Pin 8 N.C
Pin 7 5V
Pin 6 DGND
Pin 5 Cutter position sensor switch, 0V: Cutter stop, 3.3V: Cutter work
Pin 4 Cutter enable, 0V: Cutter work, 5V: Cutter stop
Pin 3 Cutter direction, 0V: Cutter positive cut, 5V: Cutter negative cut
Pin 2 AGND
Pin 1 24V
9
Peel-off / linerless connector
Pin 5 Peel power, 3.3V
Pin 4 Peel switch, 0 ~ 3.3V
Pin 3 Peel enable, 0V: Peel work, 3.3V: Peel stop
Pin 2 Peel sensor receiver, A/D: 0~3.3V
Pin 1 DGND
10
Print head connector
11
BM sensor connector
Pin 3 Power, 3.3V
Pin 2 Black mark sensor emitter, Emitter on : 2.1~2.3V, Emitter off: 2.6~2.8V
Pin 1 Gap and black mark sensor receiver, A/D: 0~3.3V
12
Gap sensor connector
Pin 2 Power, 3.3V
Pin 1 Gap sensor emitter, Emitter on : 2.1~2.3V, Emitter off: 2.6~2.8V
13
Head open sensor connector
Pin 2 Head open sensor, 0V: Head close, 3.3V: Head open
Pin 1 DGND
14
Stepping motor temp. protector
15
Power LED / FEED button connector
16
RFID module connector

TSC DA200 Series Specifications

General

Resolution	203 dpi
Max Print Width	108 mm (4.25")
Max Print Length	2, 794 mm (110")
Processor	32-bit RISC CPU
Media Roll Diameter	127 mm (5") OD
Ribbon Core Diameter	25.4 mm (1")
Print Method	Thermal Transfer/Direct Thermal
Max Print Speed	6 ips (inches per second)
Memory	8 MB Flash, 8 MB SDRAM
Interface	USB 2.0
Media Sensor	Reflective, Transmissive
Media Handling	die-cut, fan-fold, continuous
Media Type	Gap, Black mark, Notch, Continuous
Media Width	20 mm ~ 112 mm (0.79" ~ 4.41")
Media Thickness	0.06 mm ~ 0.19 mm
Ribbon Width	30 to 104 mm
Ribbon Length	300 m (984 feet)
Power Supply	External universal switching power supply
