29

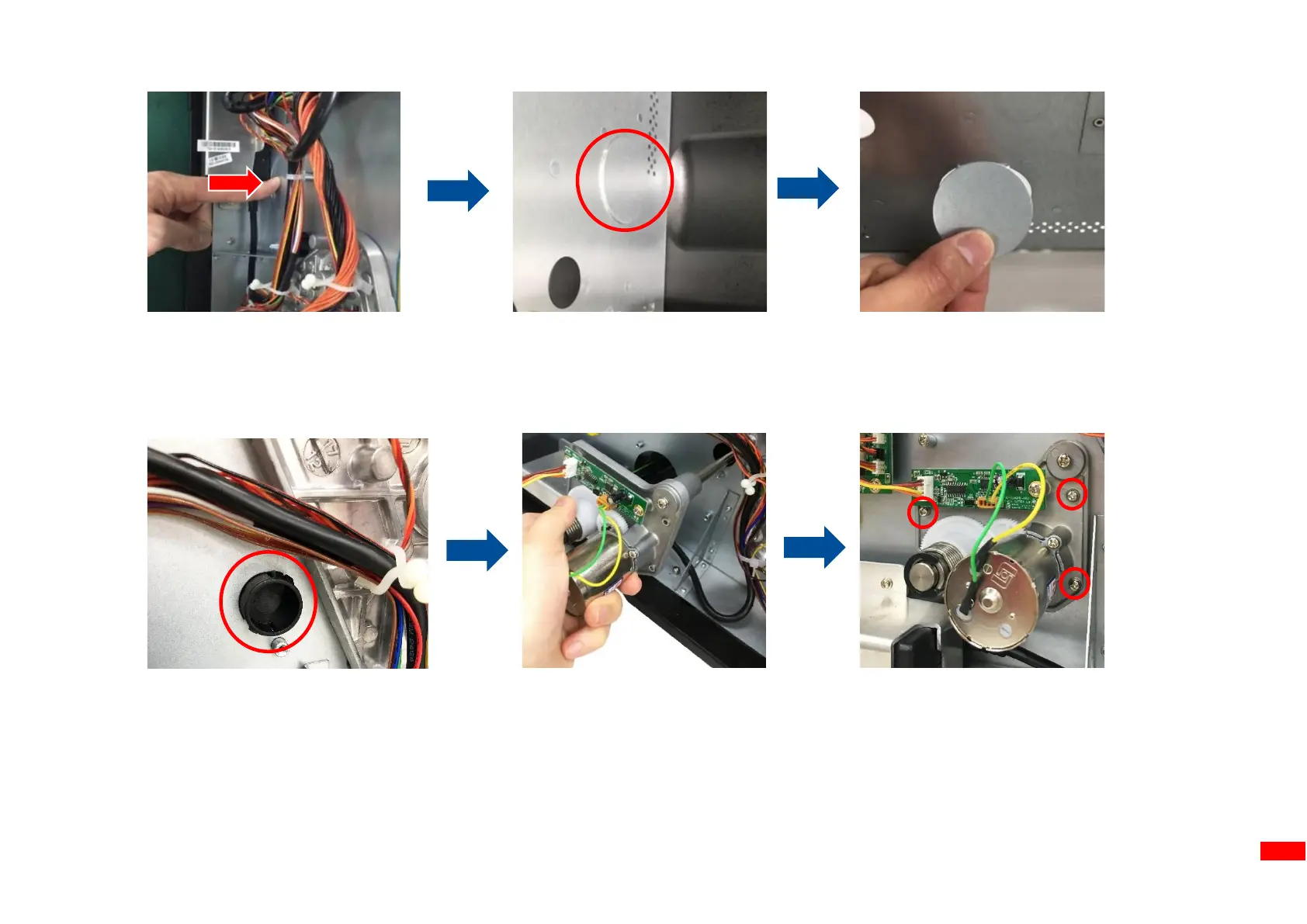

4. Remove the media guide bar cover by hand.
5. Remove the black plastic cover by push both sides of cover as indicated.
Install the rewind spindle and media guide bar on electronic side.
Fasten three screws (fastened by 7.5 kg±15% kg-cm) on rewind spindle and media guide bar module as indicated.
