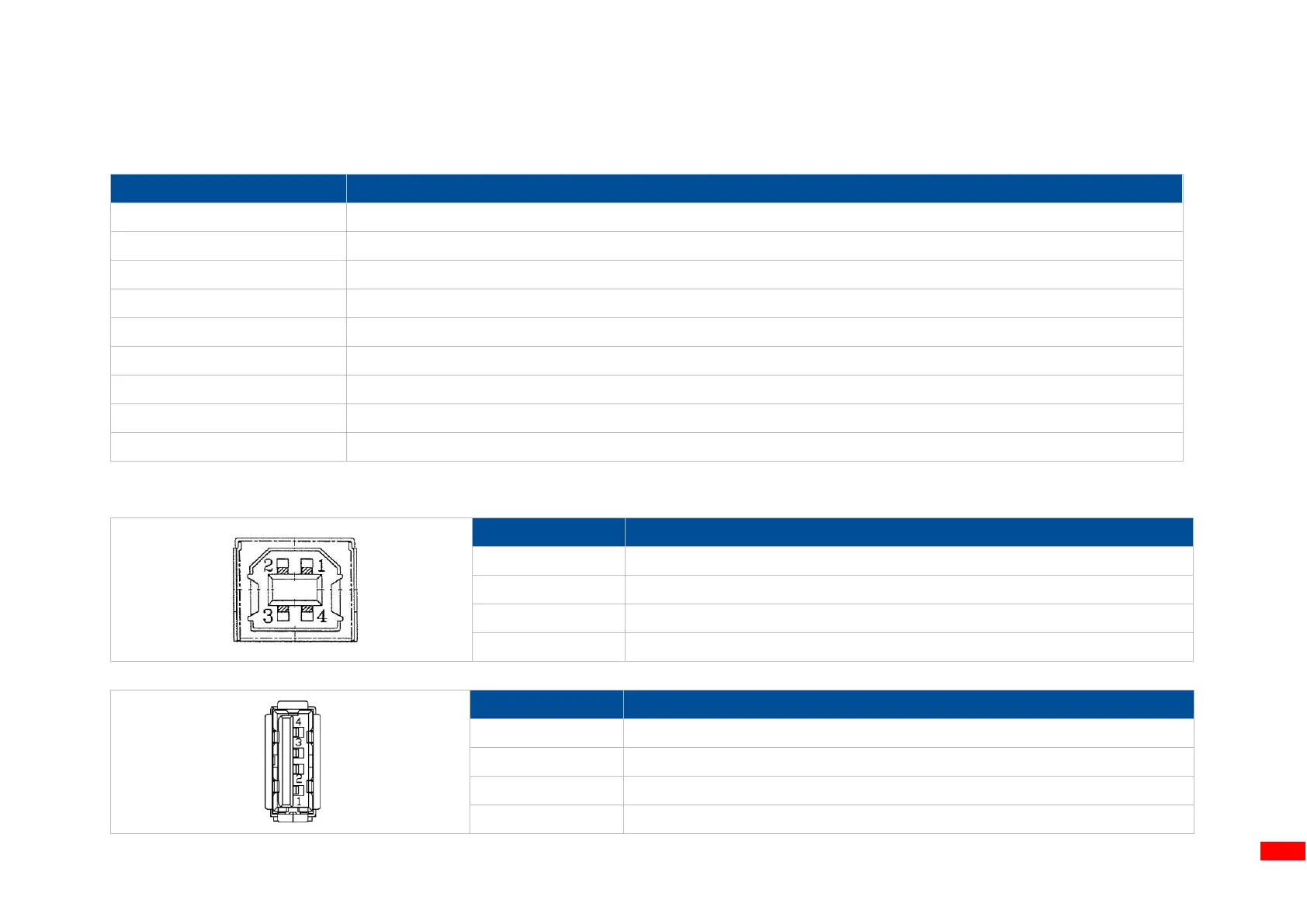

2.2 Interface Pin Configuration
RS-232C
PIN
CONFIGURATION
1
+5 V
2
TXD
3
RXD
4
CTS
5
GND
6
RTS
7
N/C
8
RTS
9
N/C
USB Device
PIN
CONFIGURATION
1
N/C
2
D-
3
D+
4
GND
USB Host
PIN
CONFIGURATION
1
5V
2
D-
3
D+
4
GND
