TSC MB340T Series Service Manual

10

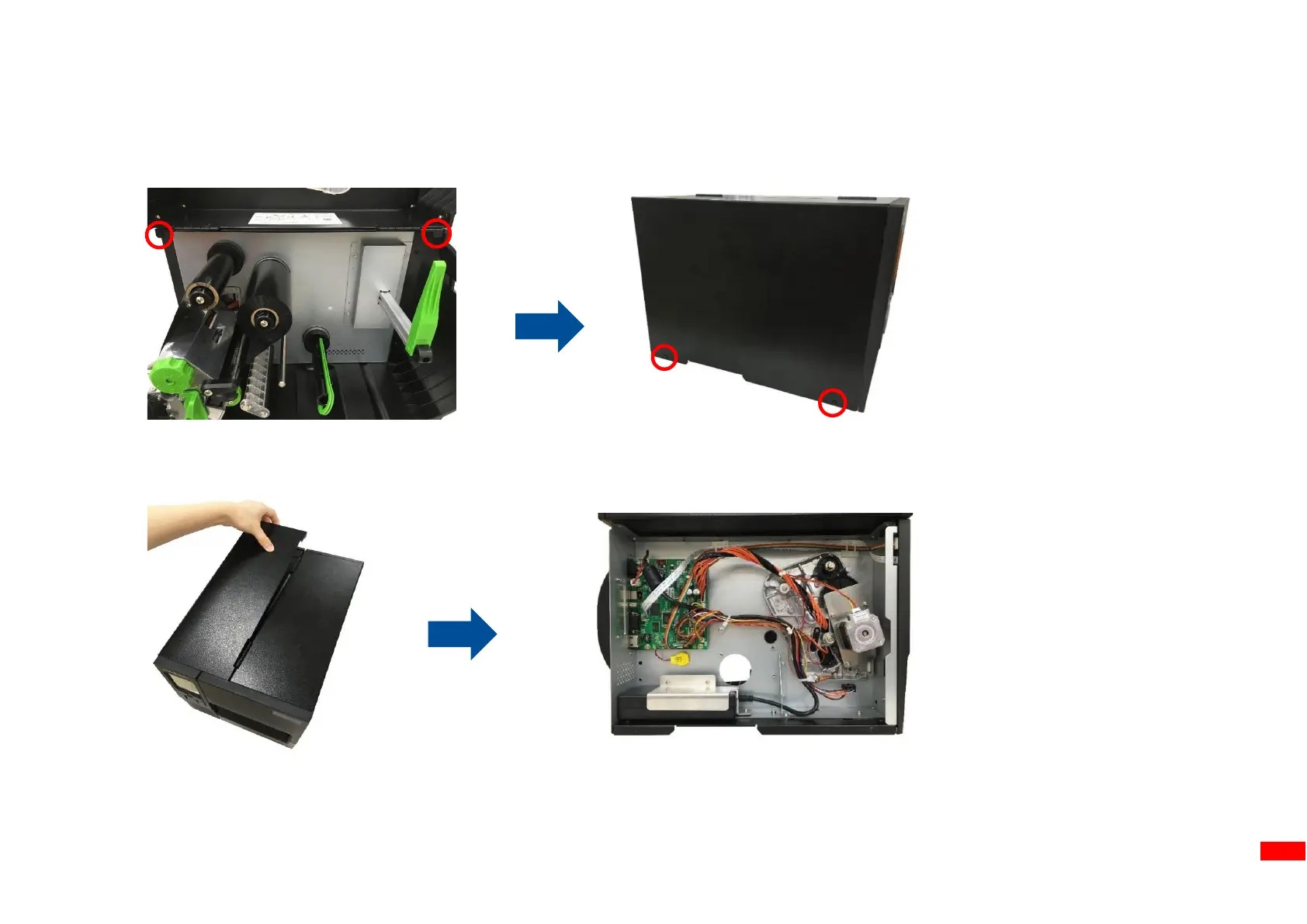

3.2 Remove the Electronics Cover
1. Open the printer right side cover and remove 2 screws (fastened by 7.5 kg±15% kg-cm) on the electronic cover as indicated.
2. Turn the printer to left side and remove 2 screws (fastened by 7.5 kg±15% kg-cm) on the electronic cover.
3. Remove the electronic cover.
4. Reassemble the parts in the reverse procedures.

TSC MB340T Series Specifications

General

Brand	TSC
Model	MB340T Series
Category	Printer
Language	English
