3.9 Replacing the Internal Full Rewinder Kit (Option)
1. Refer to Remove the Electronics Cover to remove the electronics cover.

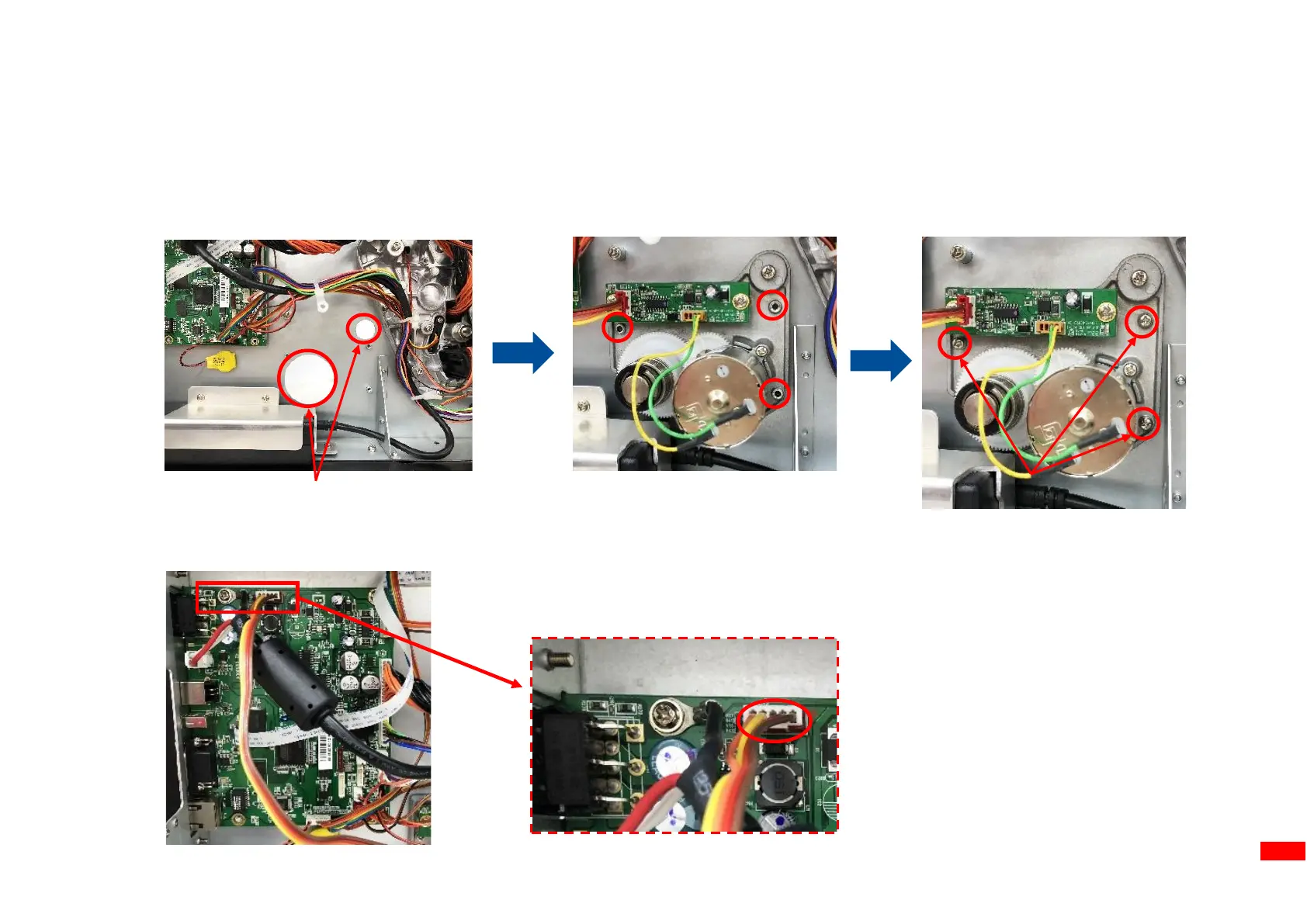

2. Install the internal full rewinder module on the positioning holes and fix the module by fasten 3 screws (fastened by 10.5 kg±
15% kg-cm) as indicated.
3. Install the internal full rewinder module cable on the main board cable socket as indicated.
Screws
Positioning holes
