3.3 Replacing the Platen Roller Assembly
1. Refer to Remove the Lower Front Panel to remove the lower front panel.

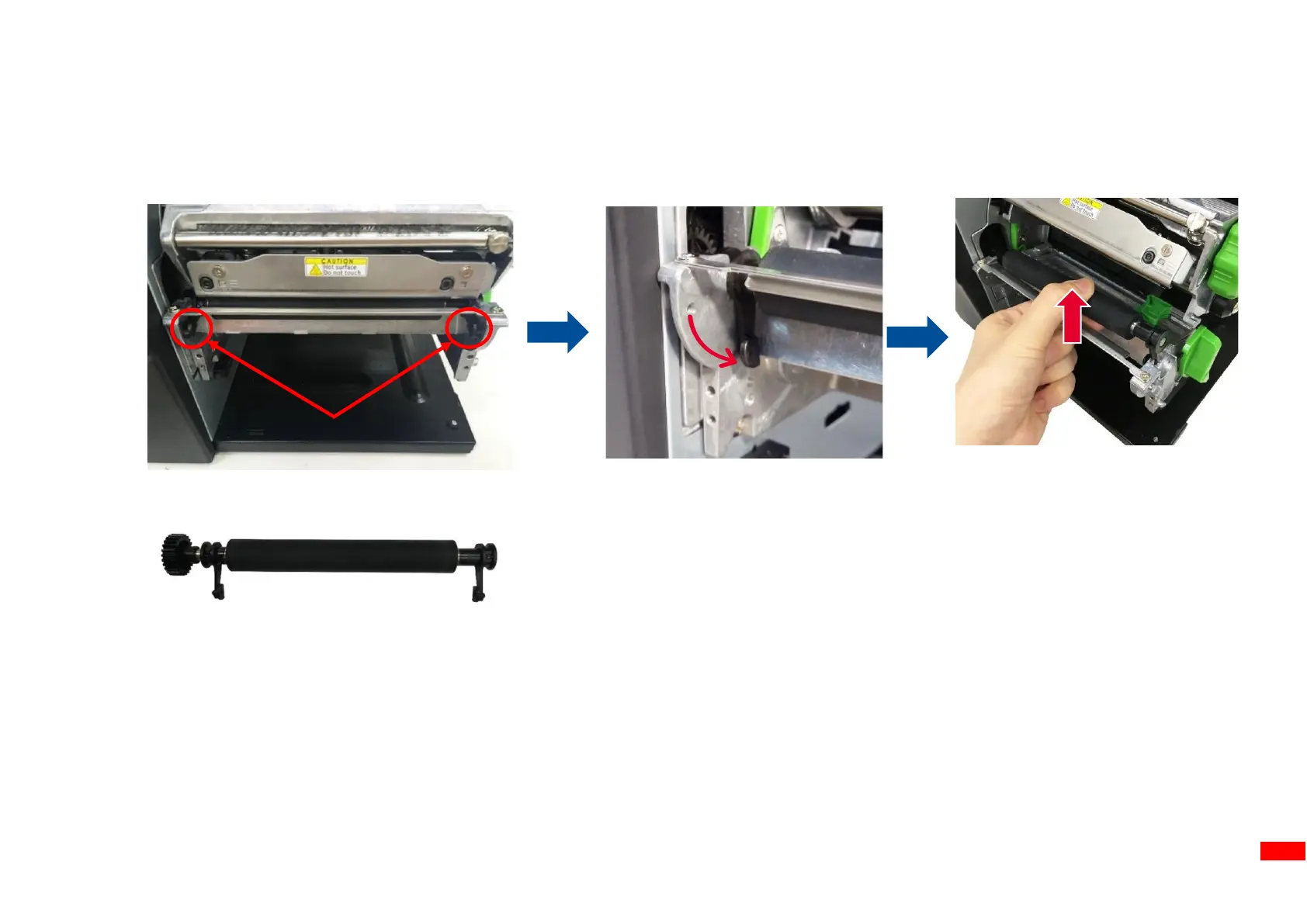

2. Release the platen roller bush tabs then push it to the end of mechanism on both sides as indicated.
3. Pull up and remove platen roller assembly.
4. Remove/Replace the platen roller assembly.
5. Reassemble the parts in the reverse procedures.
Platen roller assembly
Platen roller bush tabs
