3.14 Peel-off Kit Installation (Option)
Peel-off Kit
◼ Peel-off Sensor Module Installation
1. Refer to Remove the Lower Front Panel to remove the lower front panel.

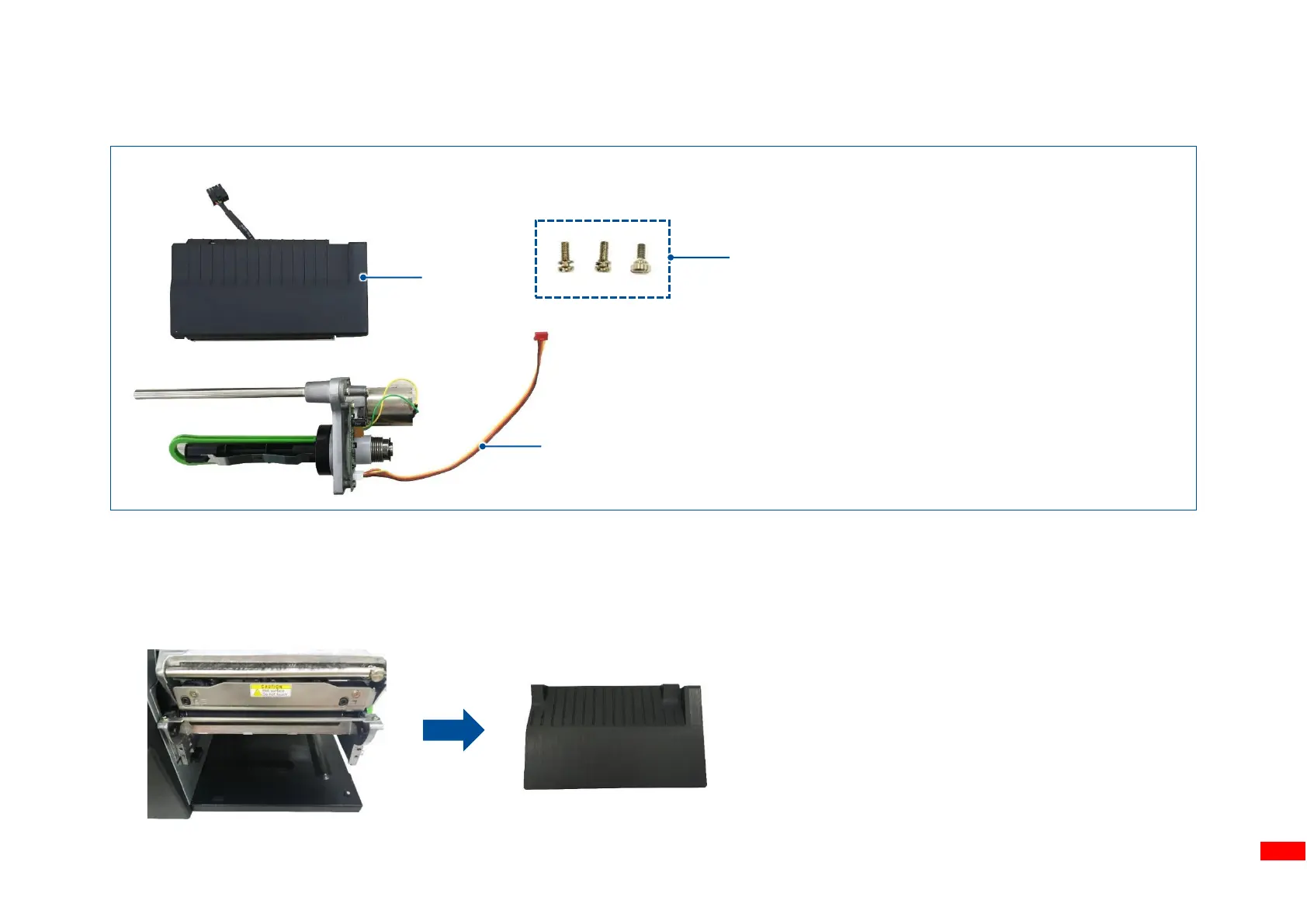

1. Peel-off module
2. Media rewind spindle and media guide
bar module
3. 2 screws and 1 shoulder screw
1
2
3
