3.17 Bluetooth Module Installation (Option)
1. Refer to Remove the Electronics Cover to remove the electronic cover.

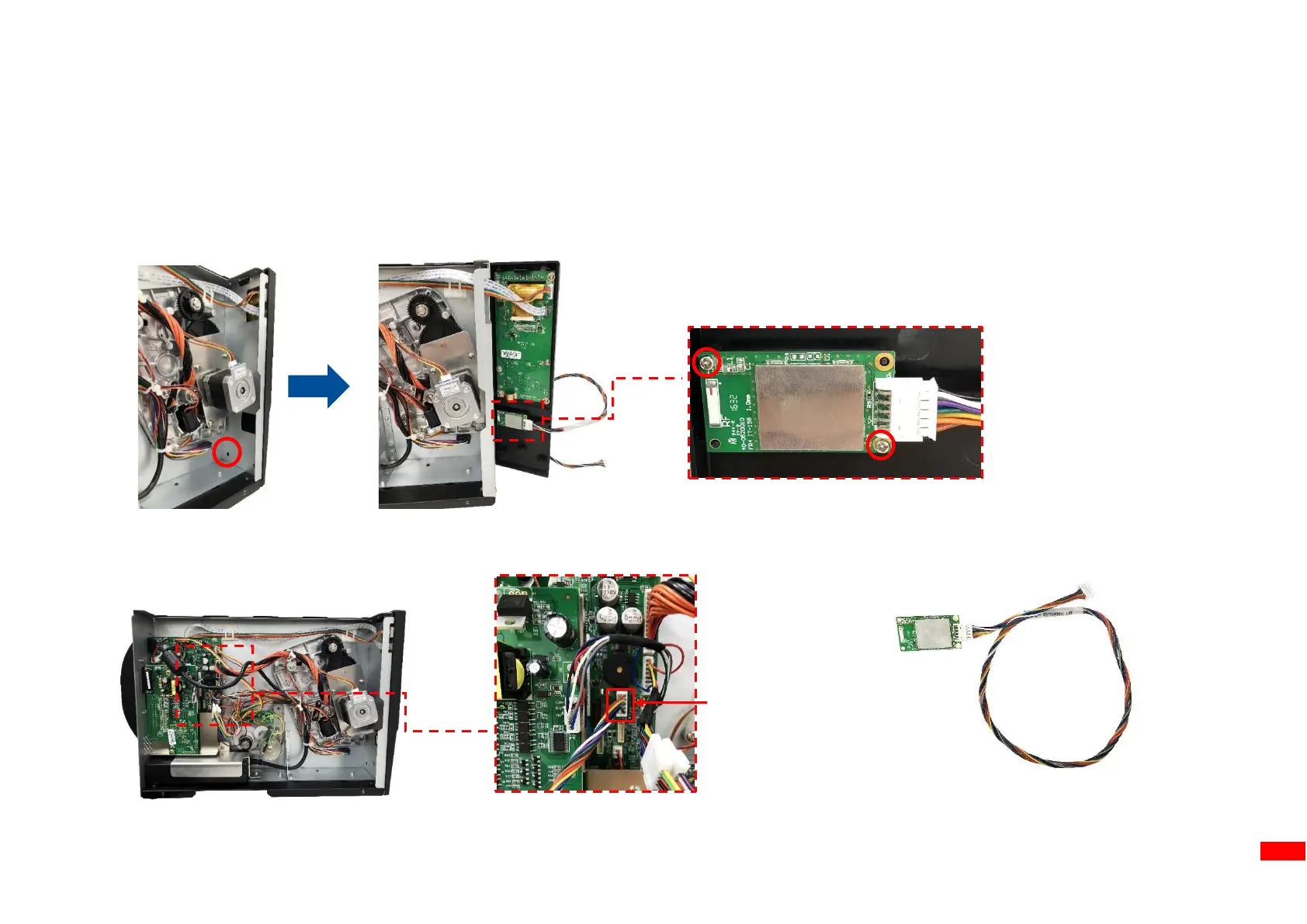

2. Remove 1 screw (fastened by 5 kg±15% kg-cm) on the panel assembly as indicated.
3. Open the panel assembly and Install the Bluetooth module by fix the 2 screws (fastened by 3.5 kg±15% kg-cm) as indicated.
Next, close the panel assembly.
4. Connect the Bluetooth module cable on the main board as indicated.
5. Remove/Replace the Bluetooth module.
6. Reassemble the parts in the reverse procedures.
