TSC MB340T Series Service Manual

34

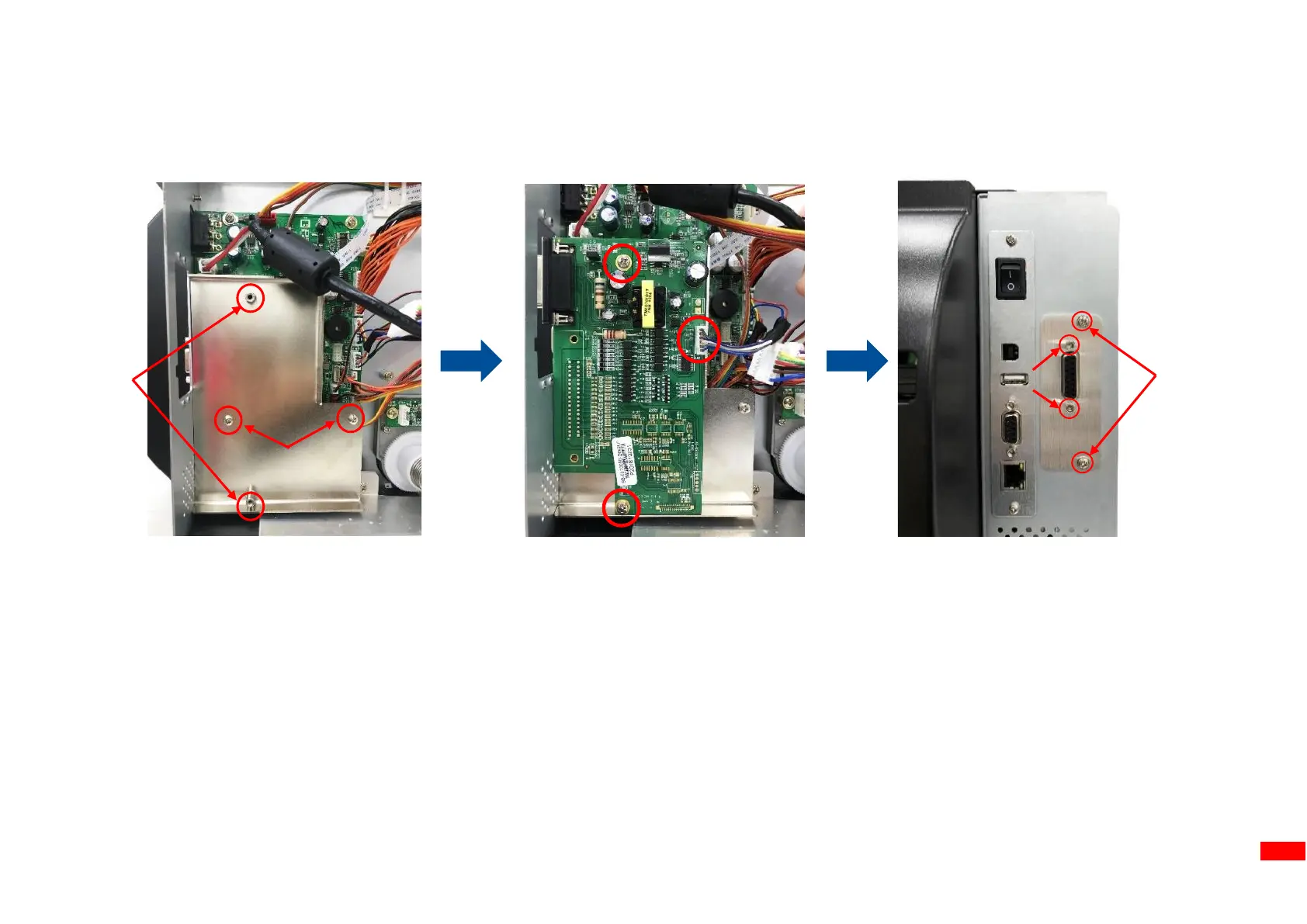

4. Fasten 2 screws (fastened by 5.5 kg±15% kg-cm) on GPIO fix board first. Then, aligning the GPIO board to the 2 locating holes
on GPIO fix board and fasten another 2 screws (fastened by 5.5 kg±15% kg-cm) as indicated.
5. Insert the rest connector of GPIO transfer cable to GPIO board.
6. Reassemble the parts in the reverse procedures.
Locating
holes
Screws
Screws
Hexagon screws
