3.4 Replacing the Print head ASS’Y

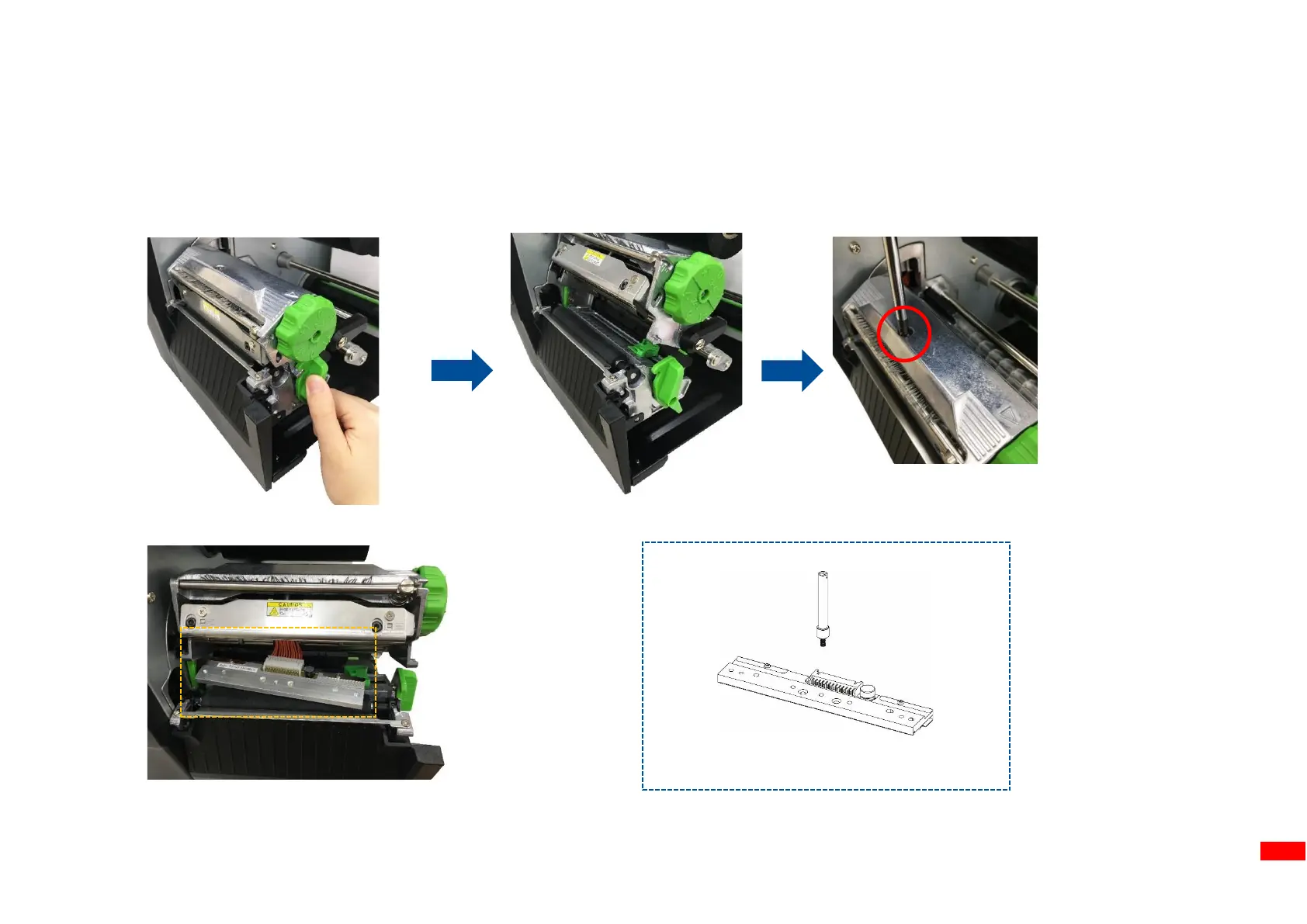

1. Open the media cover.
2. Push the print head release lever to open the print head mechanism.
3. Release the print head assembly by removing 1 screw (fastened by 5 kg±15% kg-cm) as indicated.
4. Remove/Replace the print head assembly.
5. Reassemble the parts in the reverse procedures.
Print head module assembly spare part
