TSC MB340T Series - Page 19

15

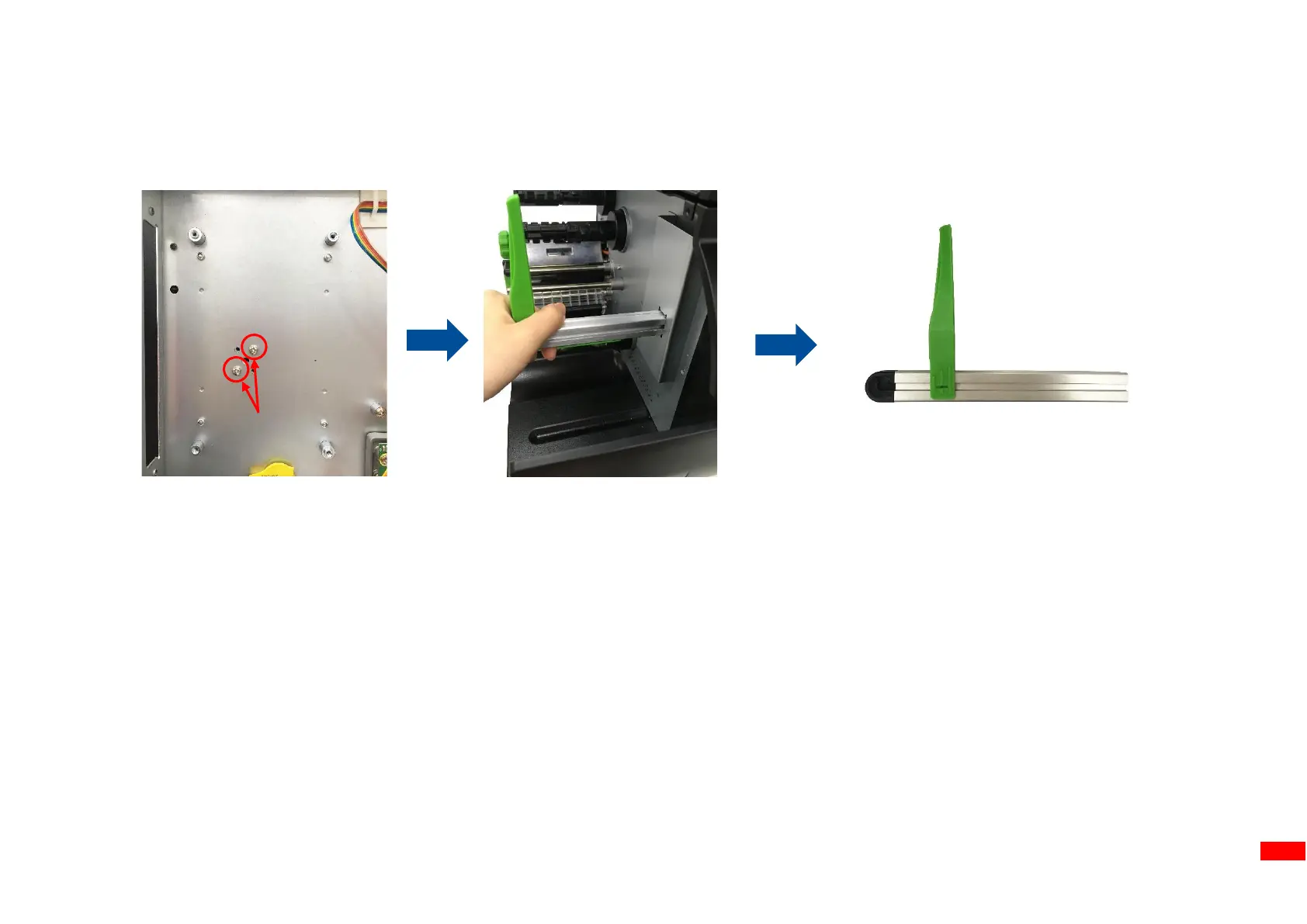

4. After removing the main board, loosen the 2 screws (fastened by 7.5 kg±15% kg-cm) as indicated.
5. Remove/Replace the label supply spindle.
6. Reassemble the parts in the reverse procedures.
Label supply spindle
Screws of label spindle
