37

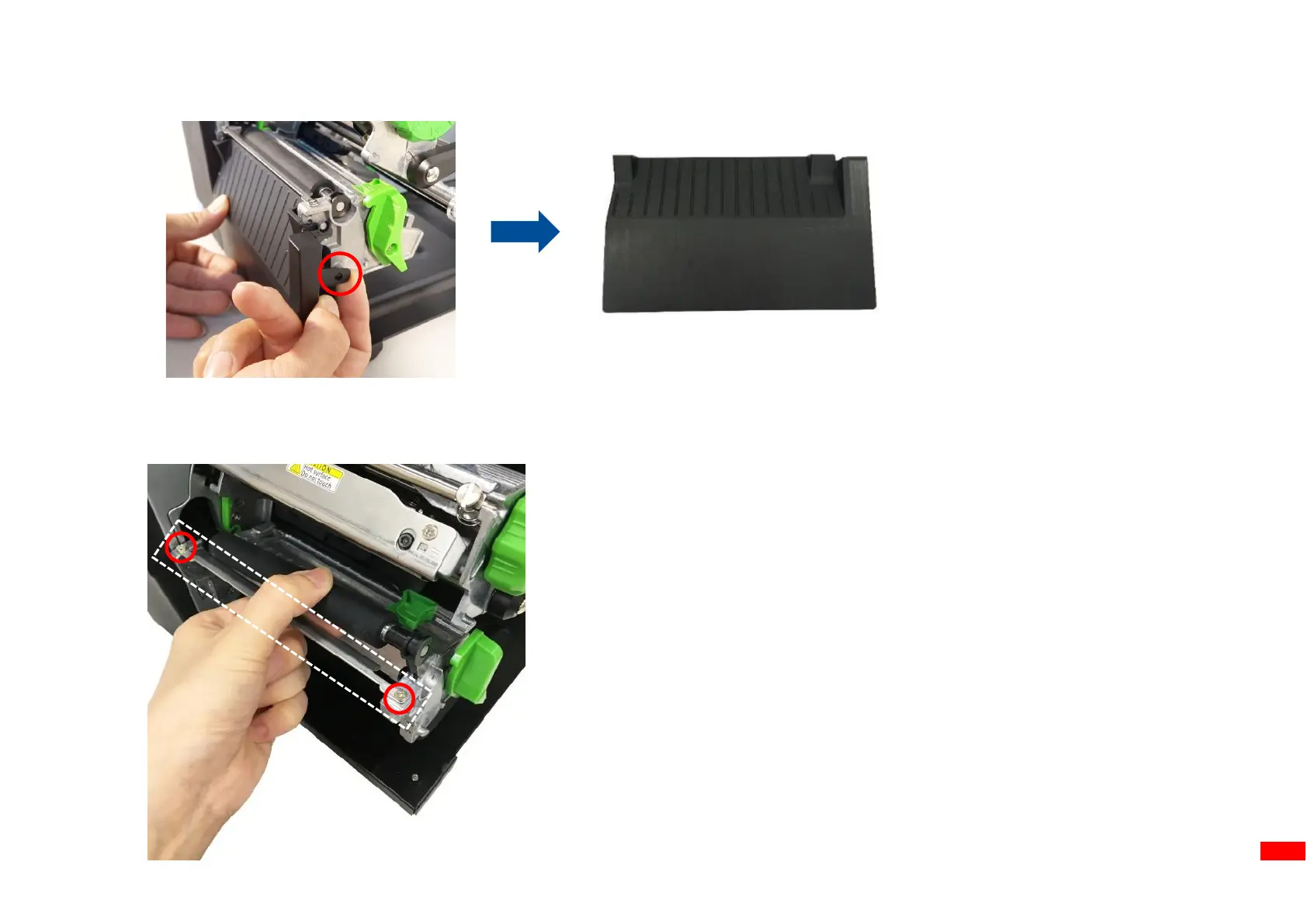

1. Move the tab outward then pull the panel inward to remove the lower front panel.
2. Refer to Replacing the Platen Roller Assembly to remove the platen roller (black) and remove the 2 screws to remove the tear
bar.
Lower front panel
Tear bar
