3.3 Replacing the Key/LCD Panel Module
1. Refer to section 3.1 to remove the electronics cover.
2. Disconnect harness from the Key/LCD panel module.

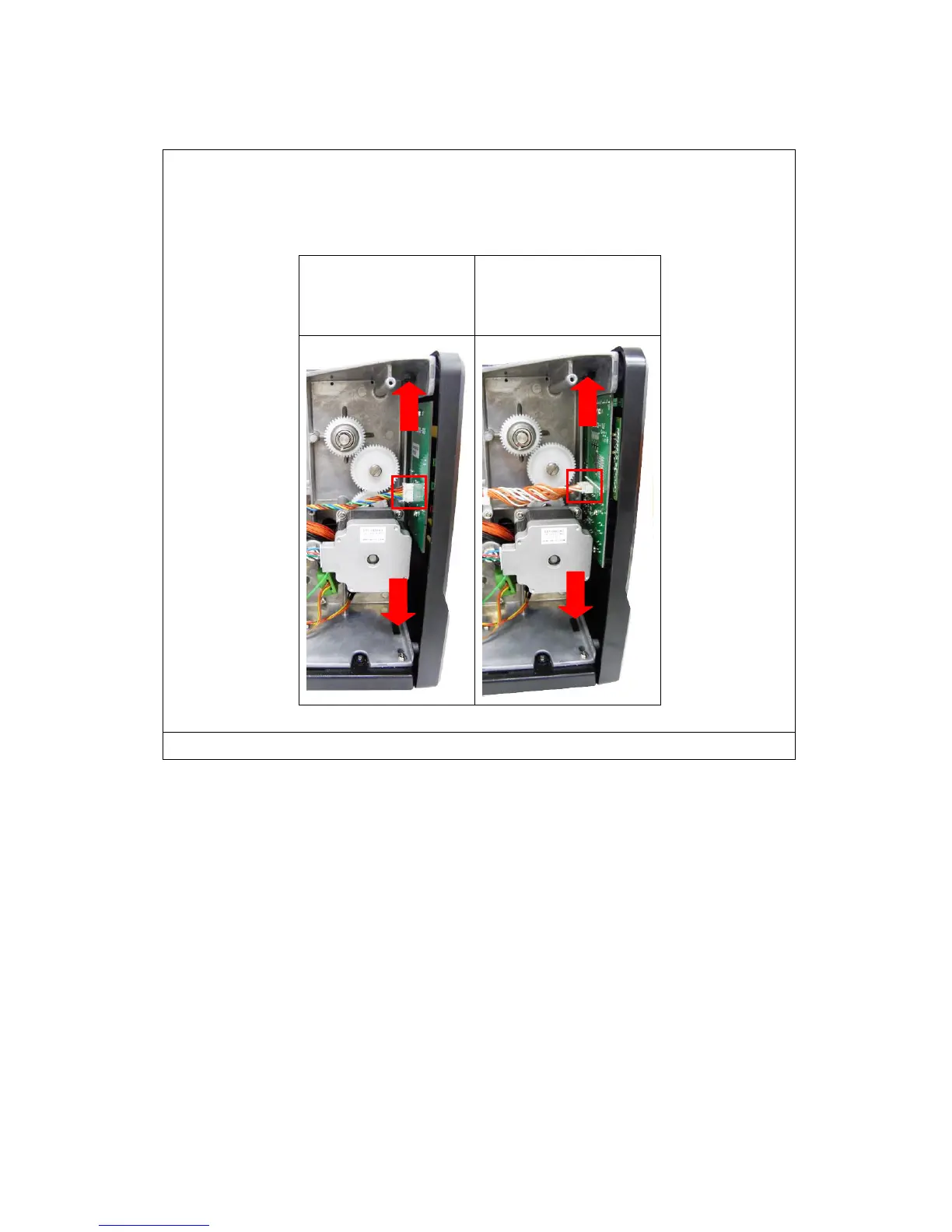

3. Push two tabs to remove/replace the Key/LCD panel module.
Key Panel Module
LCD Panel Module
(Option for Basic
model)
4. Reassemble the parts in the reverse procedures.
PUSH
PUSH
PUSH
PUSH
