TSC ME240 Service Manual

33
33

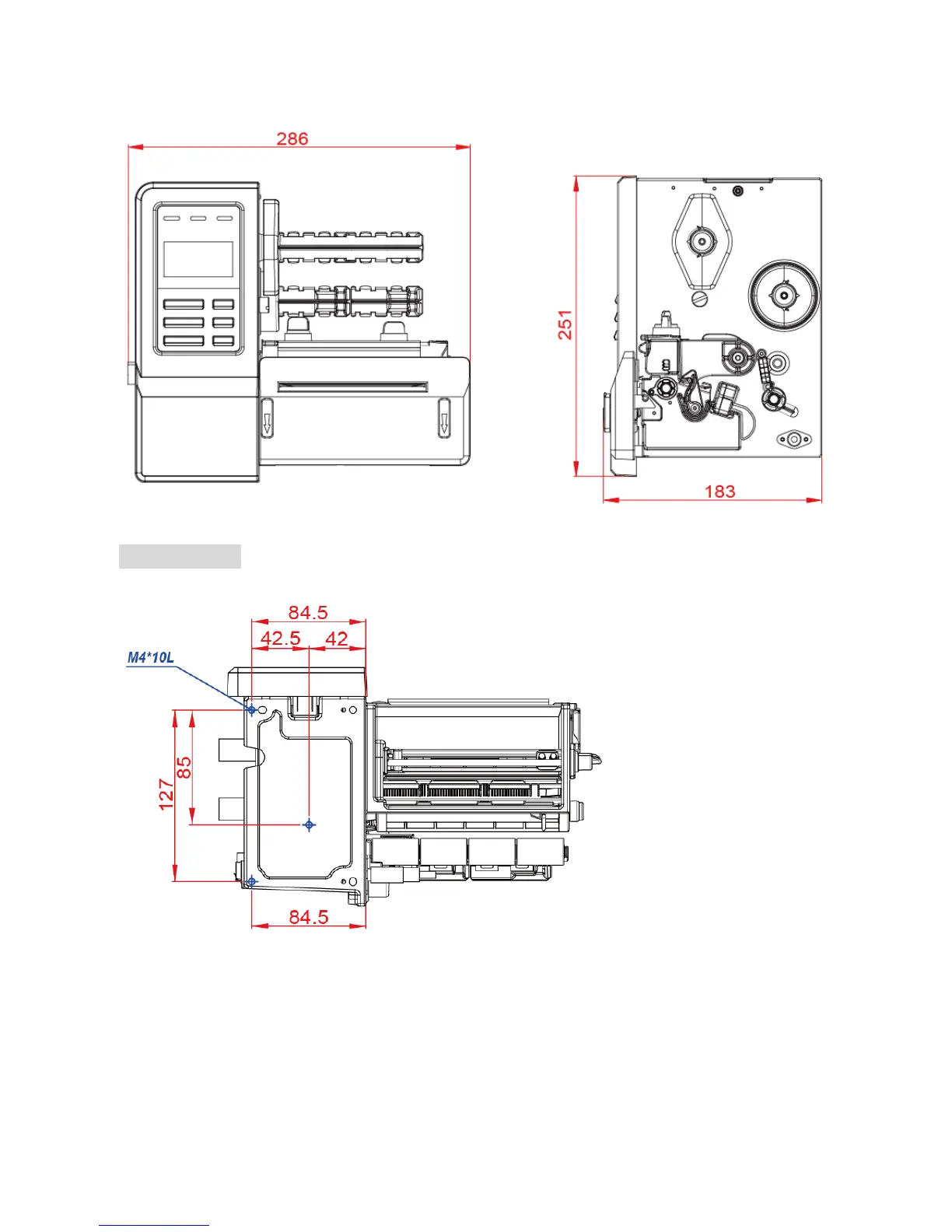

-Print engine module with cutter
Bottom view
Note:
1. All measurements are in mm.
2. There are 3 fastenings in this print engine module, the fastening location be marked in
blue on bottom view drawing, fits with screw M4*10L.

TSC ME240 Specifications

General

Resolution	203 dpi / 300 dpi
Operating Temperature	5°C to 40°C (41°F to 104°F)
Print Method	Thermal Transfer & Direct Thermal
Interface	USB
Power Supply	AC 100-240V, 50/60Hz
Humidity	20% to 85% RH (non-condensing)
