3.13 Cutter Module Installation (Option)

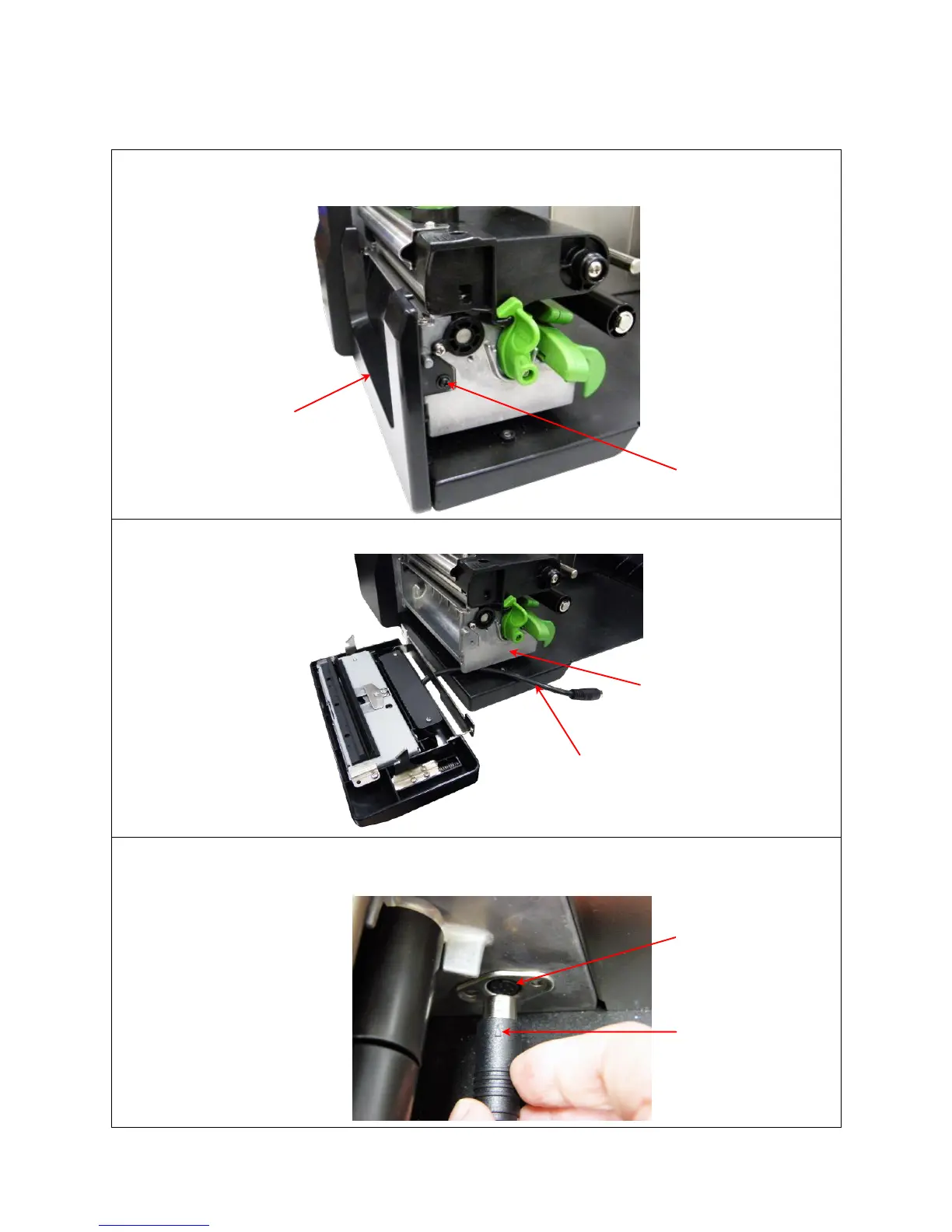

1. Open printer right side cover.
2. Remove one screw to remove the lower front cover.
3. Thread the cutter cable through the bottom of lower print mechanism.
4. Plug the cutter mini DIN cable connector into the cutter/peel-off module cable connector.
The triangle mark on the connector must be at the upper side.
Lower print
mechanism
Lower front
cover
Cutter module cable
Screw
Triangle mark
Peel/cutter
module cable
connector
