3.4 Replacing the Main Board

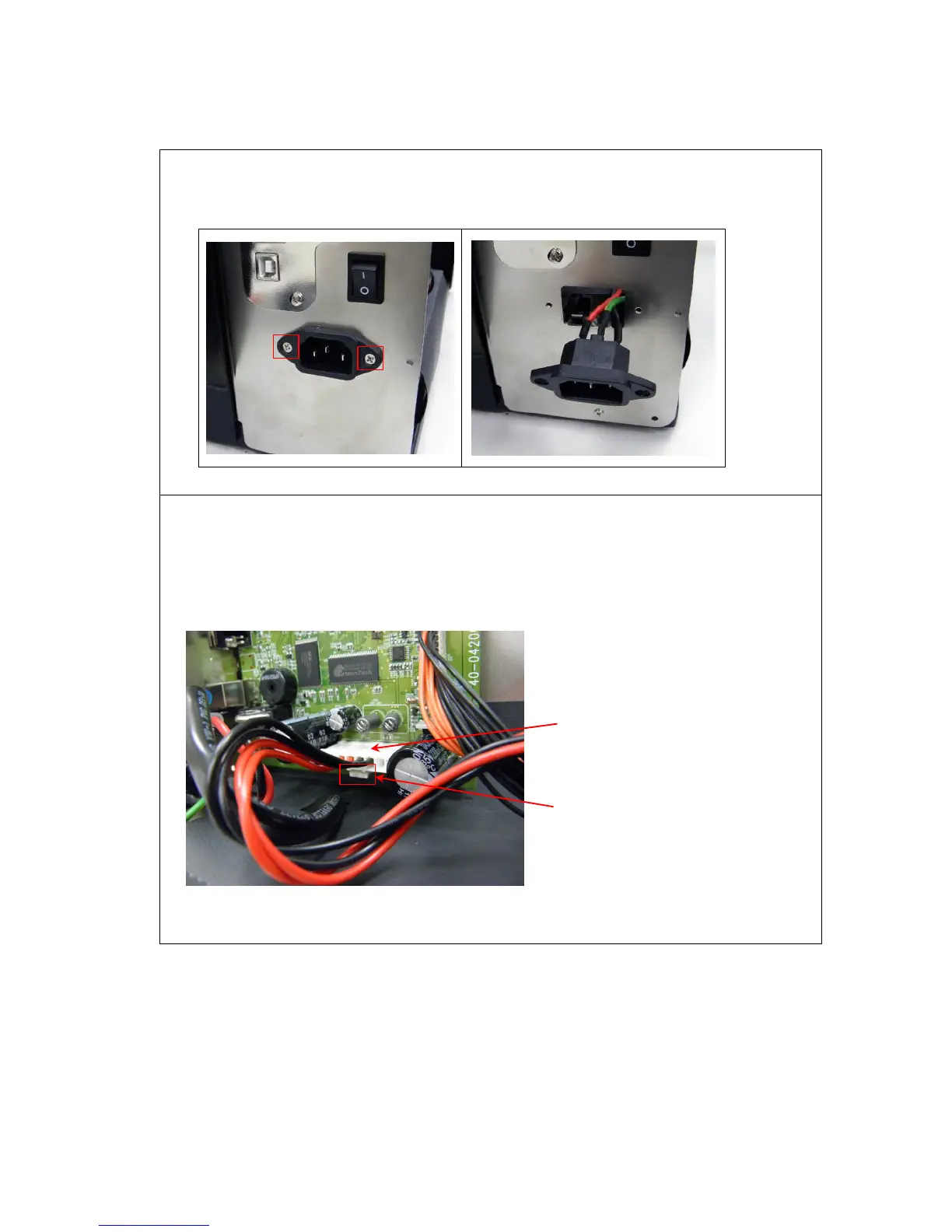

1. Refer to section 3.1 to remove electronics cover.
2. Remove two screws on the power jack socket then pull out the socket.
3. Disconnect all connectors from the main board.
Note:
You should press the tab of power supply harness when disconnect the power supply
connector.
The tab of harness
The connector to
power supply
