20
20

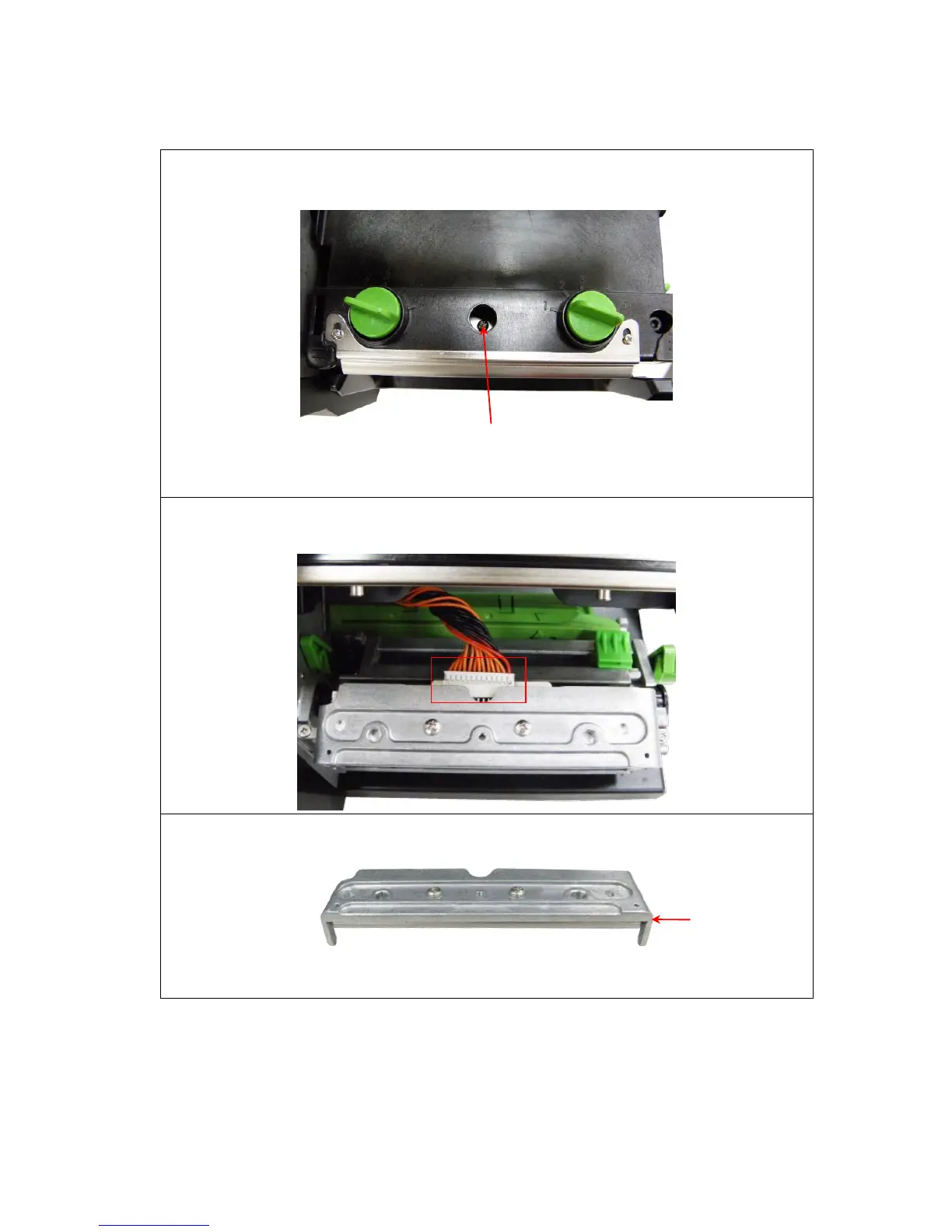

3.8 Replacing the Print head ASS'Y
1. Open the printer right side cover.
2. Remove one screw from the mechanism.
3. Disengage the print head release lever.
4. Carefully disconnect the print head connector from the print head module.
5. Replace the print head module.
Screws
Print head
module
