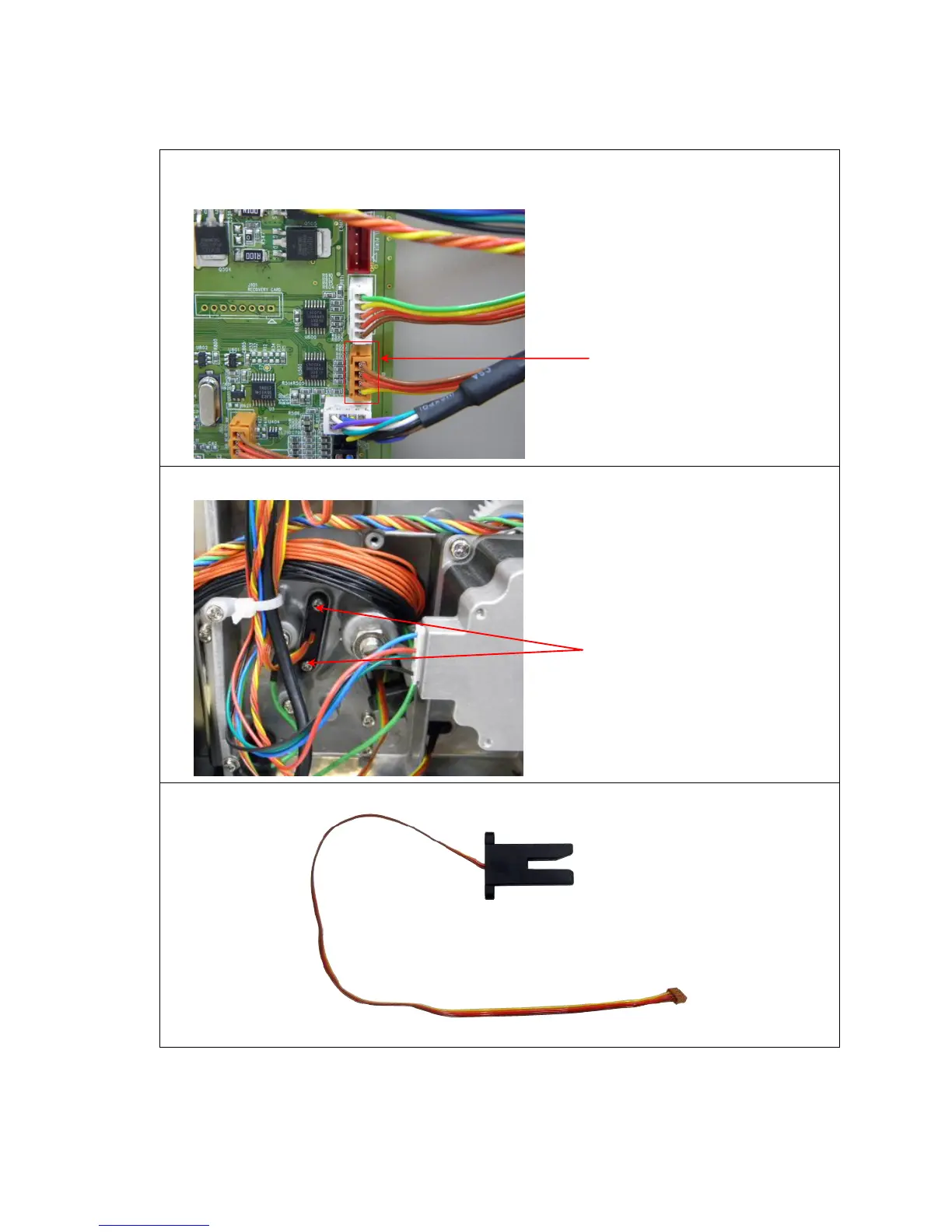

3.10 Replacing the Ribbon End Sensor Module
1. Refer to section 3.1 to remove the electronics cover.
2. Disconnect the ribbon end sensor module connector from the main board.
3. Remove two screws to remove the ribbon end sensor module.
6. Replace the media sensor module.
7. Reassemble the parts in the reverse procedures.
Screws
Ribbon end sensor
module connector
