6. Connect the print head cable and carefully slide assembly into the print
mechanism. The holes of print head assembly must align and then insert the
tenons of print mechanism.
7. Close the print head release lever. Use the new screw to install the new print
head module.

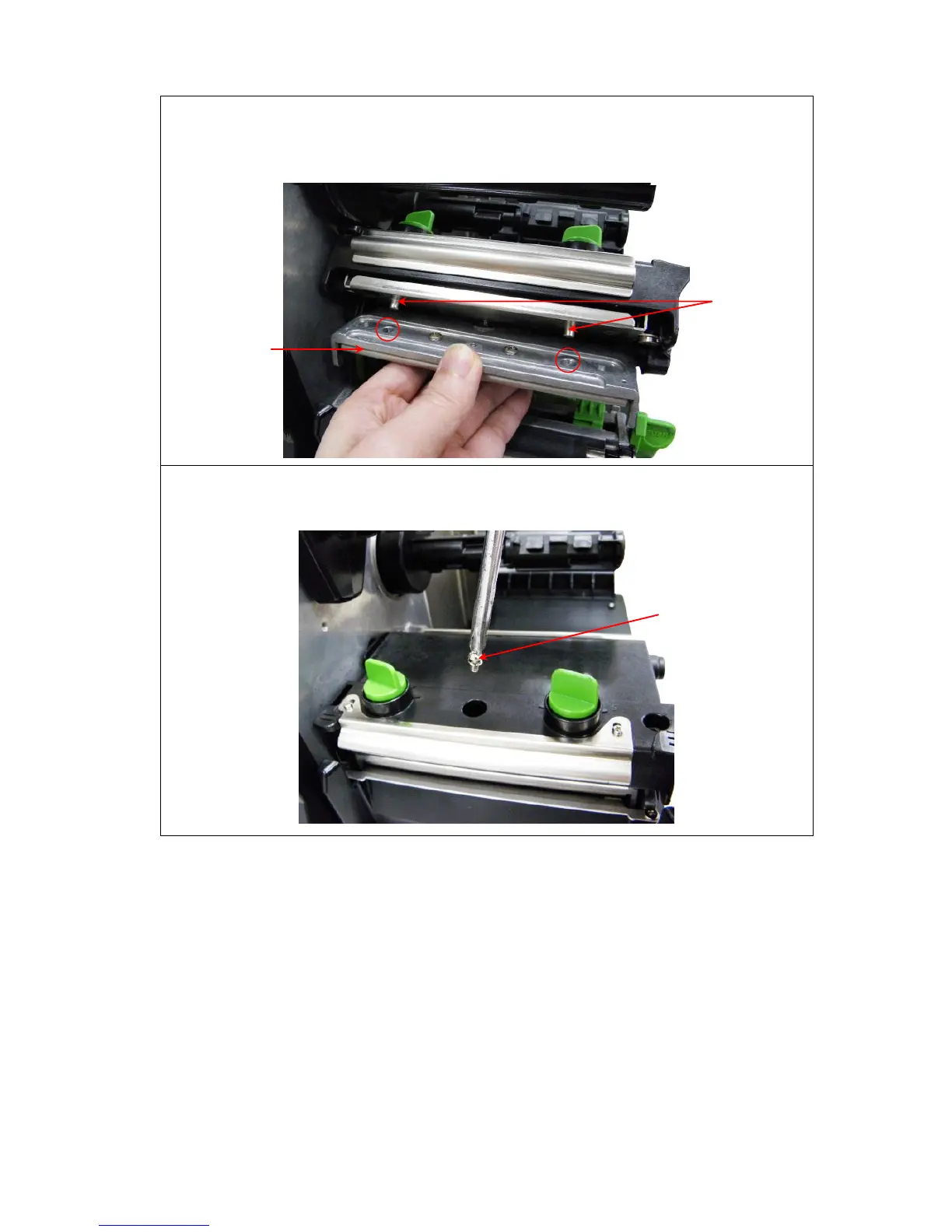

Print head
module
Tenons
New screw
