TSC ME240 Service Manual

7
7

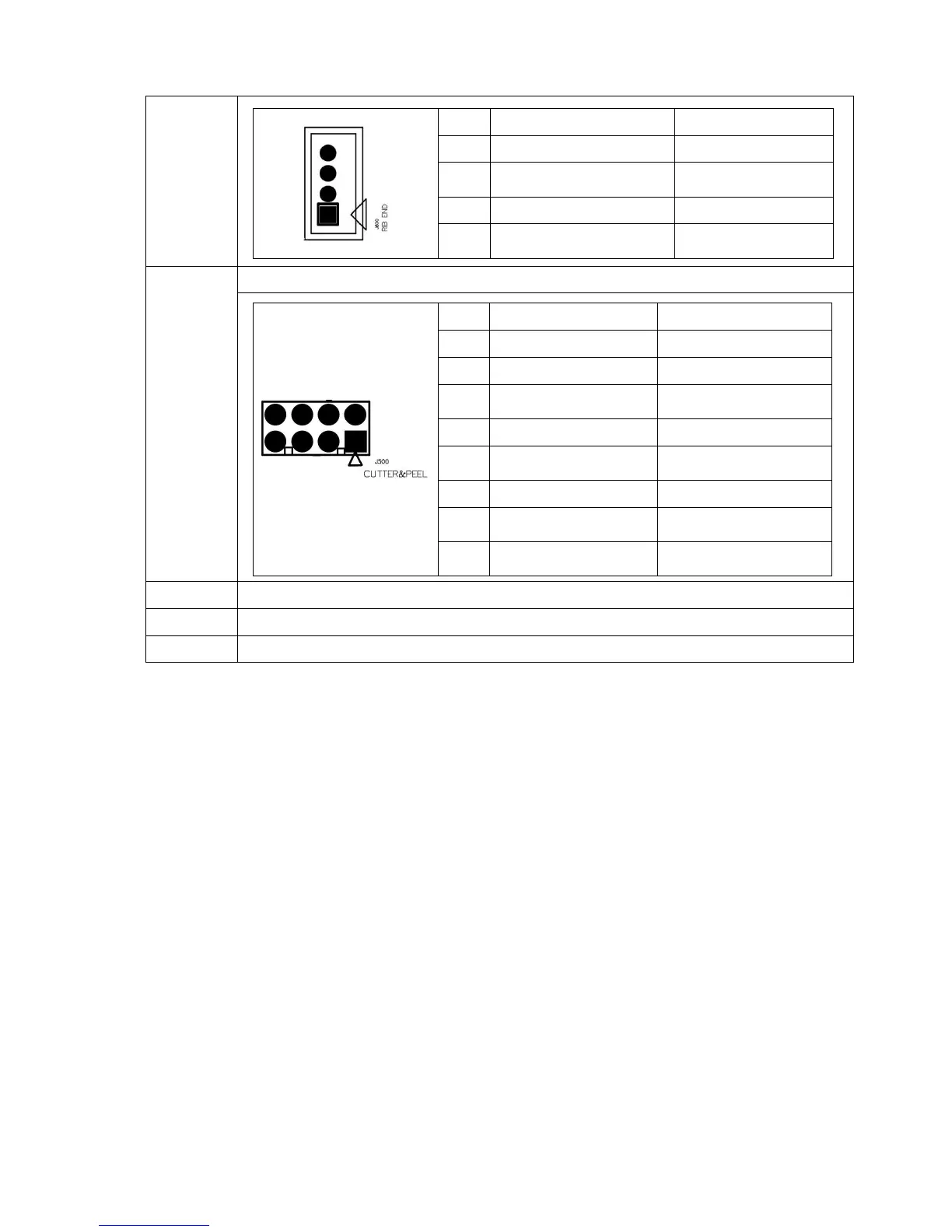

Pin
Description
Voltage
1
Ribbon sensor receiver
A/D: 0~3.3V
2
Ribbon sensor emitter
power pin
5V
3
GND
0V
4
Ribbon sensor emitter
4.0~4.1V: Emitter on
4.3~4.4V: Emitter off
16
Cutter/peel-off sensor connector
Pin
Description
Voltage
1
GND
0V
2
Cutter power
24V
3
Peel sensor emitter
4.0~4.1V: Emitter on
4.3~4.4V: Emitter off
4
Logic power
5V
5
Cutter position sensor
switch
0V: Cutter stop
3.3V: Cutter work
6
Peel sensor receiver
A/D: 0~3.3V
7
Cutter enable
0V: Cutter work
5V: Cutter stop
8
Cutter direction
0V: Cutter positive cut
5V: Cutter negative cut
17
LCD panel connector
18
Print head signal connector
19
Power supply output (24V DC) connector
