15
15
PEX-1000 Series
Print
Engine Service Manual

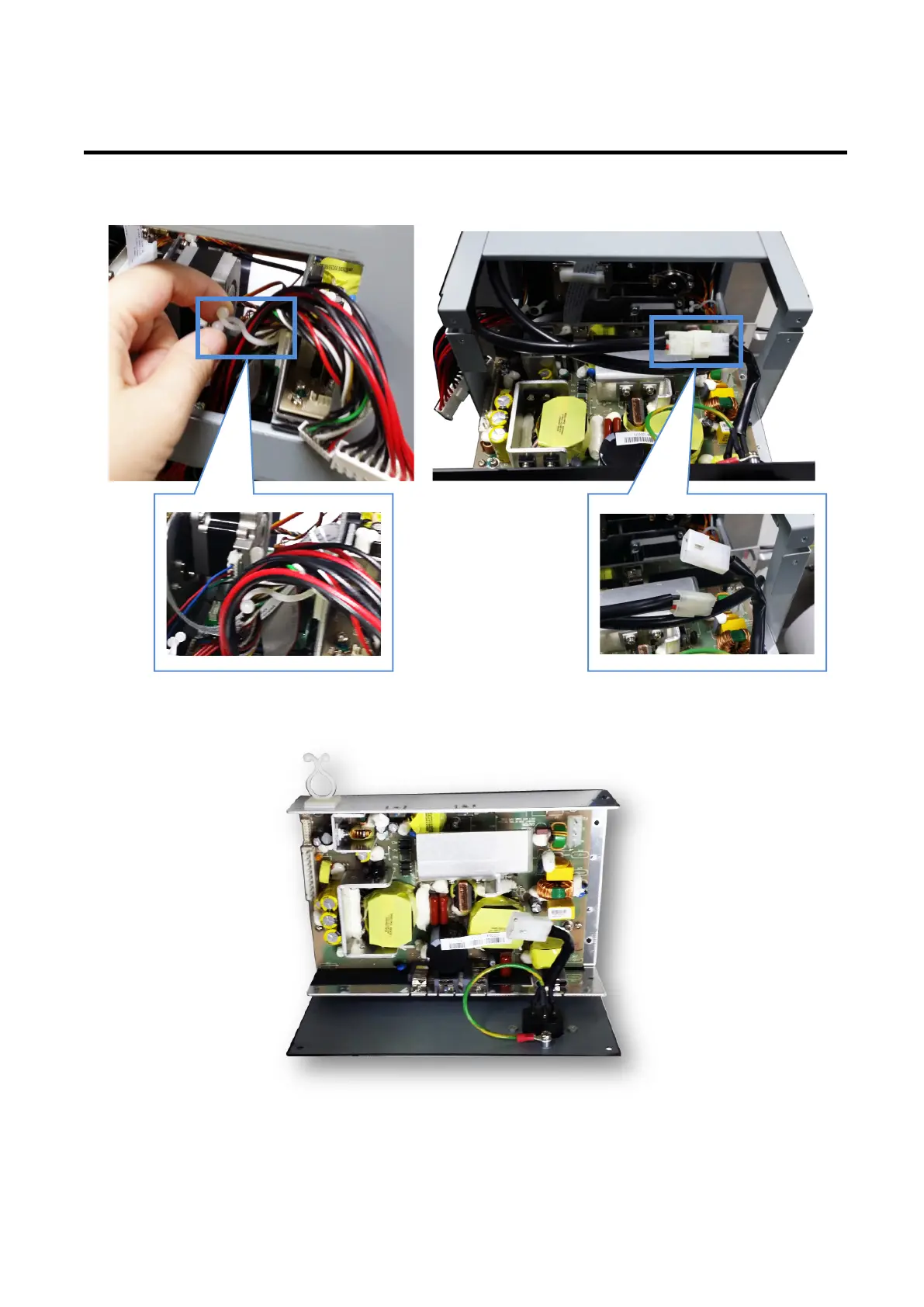

4. Pull the power supply unit to loosen the cable tie and disconnect one connector as shown.
5. Remove/Replace the power supply unit.
6. Reassemble the parts in the reverse procedures.
