PEX-1000 Series
Print
Engine Service Manual

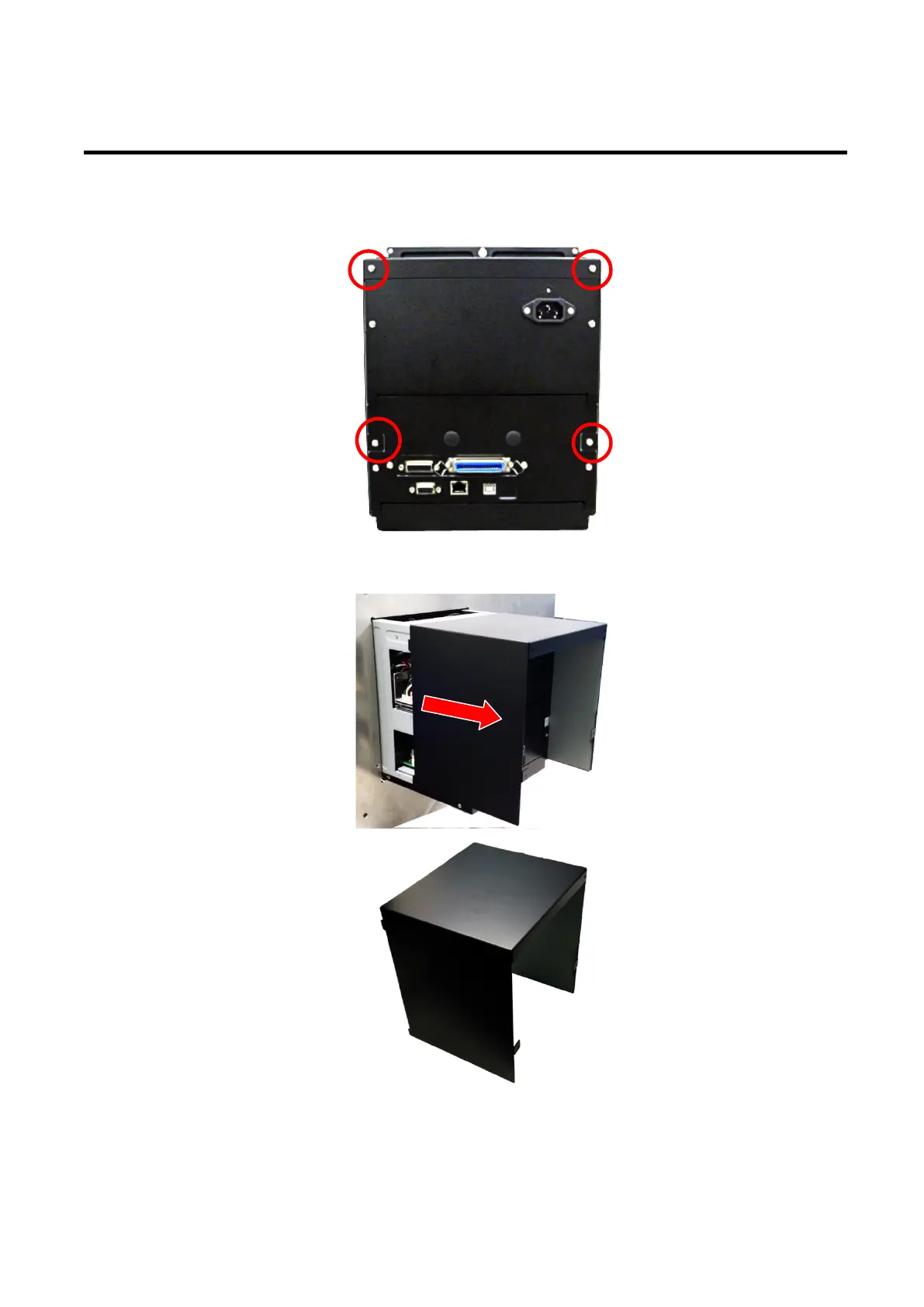

3.3 Remove the Electronics Cover
1. Remove four screws on the electronics cover.
2. Draw out the electronics cover to remove it.
3. Reassemble the parts in the reverse procedures.
Electronics cover
