PEX-1000 Series
Print
Engine Service Manual

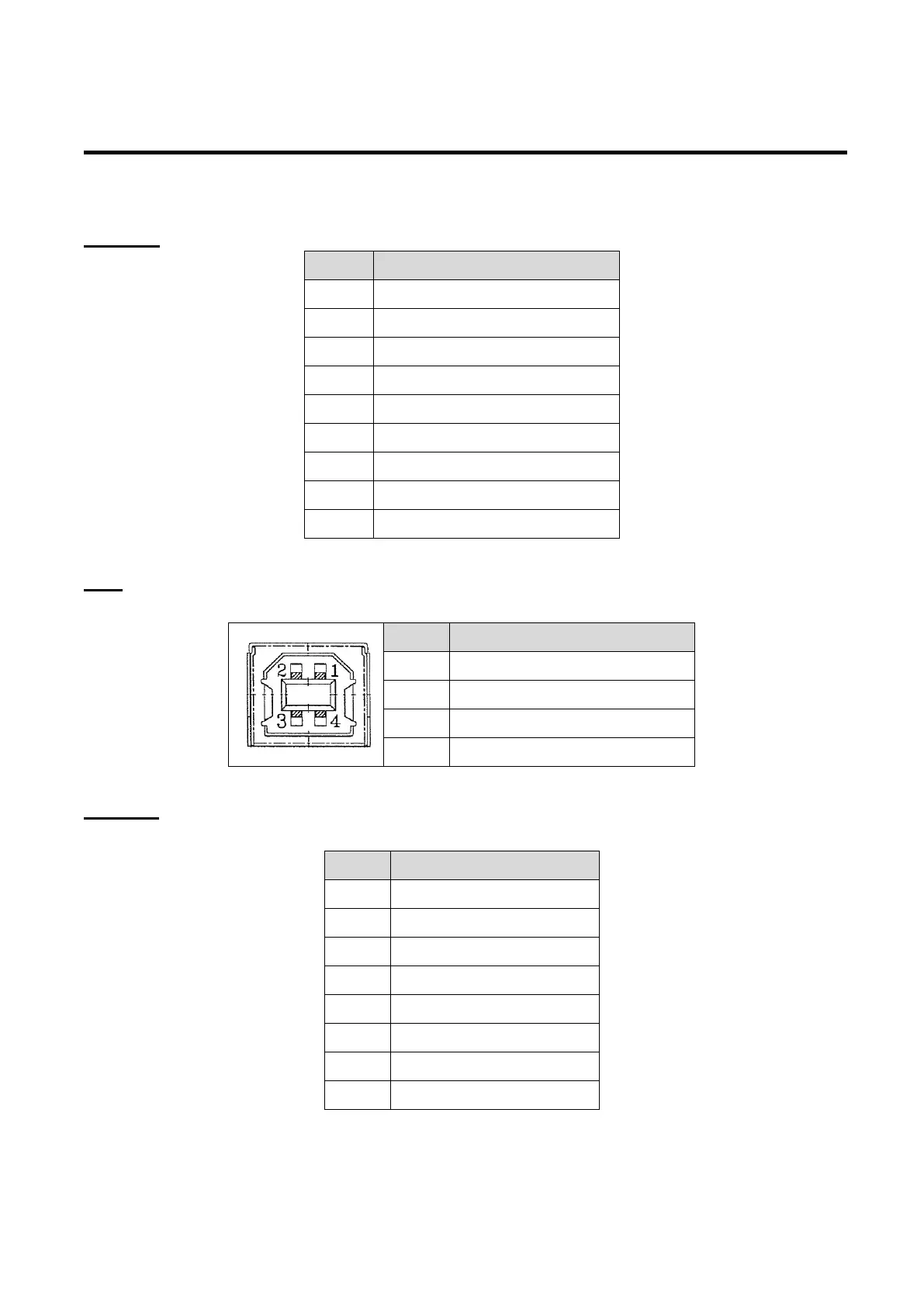

2.2 Interface Pin Configuration
RS-232C
PIN
CONFIGURATION
1 +5 V
2
TXD
3 RXD
4 CTS
5 GND
6
RTS
7 N/C
8
RTS
9 N/C
USB
PIN
CONFIGURATION
1
N/C
2 D-
3
D+
4 GND
Ethernet
PIN
CONFIGURATION
1
Tx+
2 Tx-
3
Rx+
4 N/C
5 N/C
6 Rx-
7
N/C
8 N/C
