3.9 Replacing the Bluetooth Module & Wi-Fi Module
1. Follow the previous section 3.8 to open the LCD cover.
2. For Bluetooth module, disconnect one cable connector and four screws to replace it.
For Wi-Fi module, disconnect one cable connector, three screws and one antenna connector to
replace it.
3. Reassemble the parts in the reverse procedures.

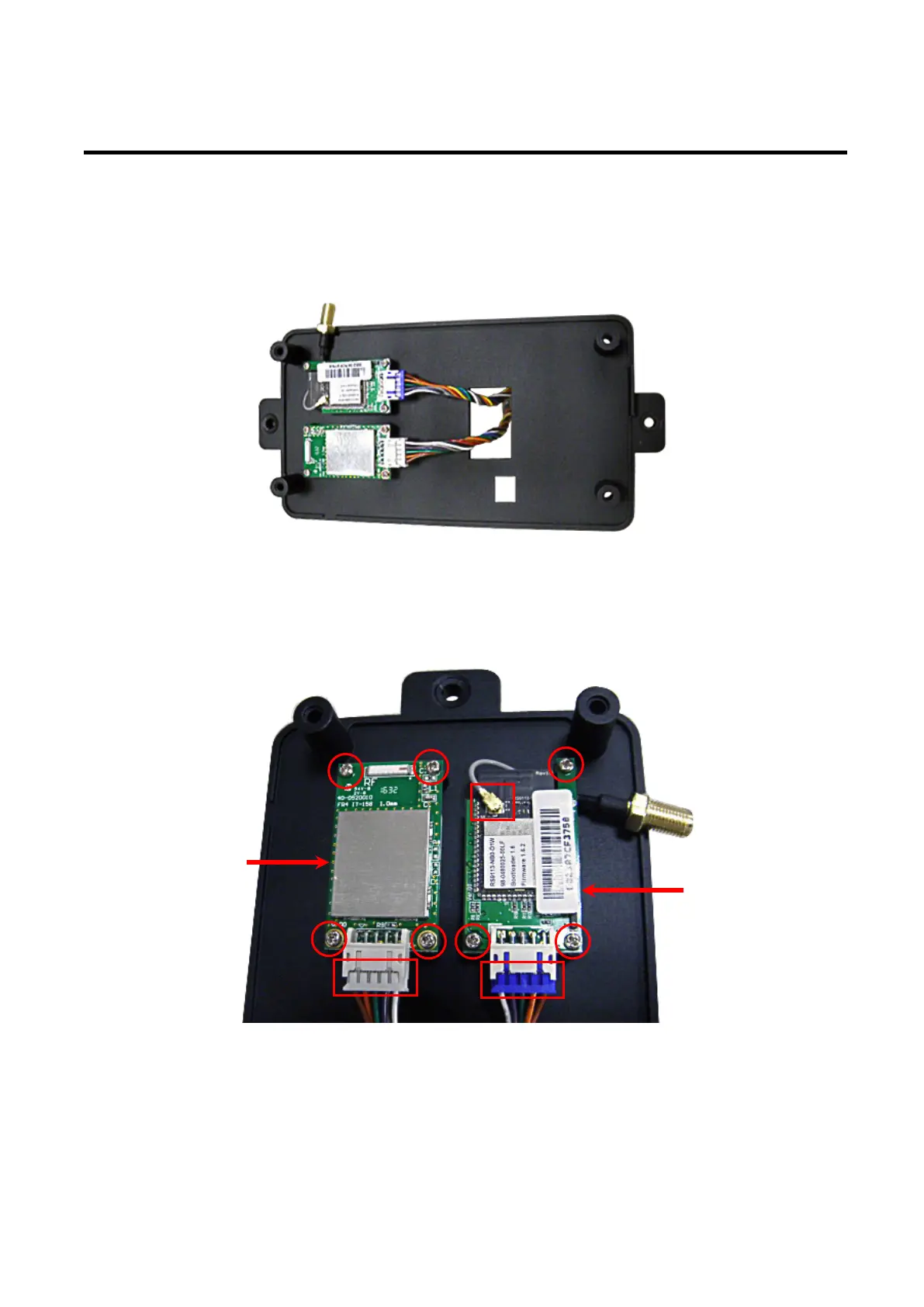

Bluetooth
module
Wi-Fi
module
