PEX-1000 Series
Print
Engine Service Manual

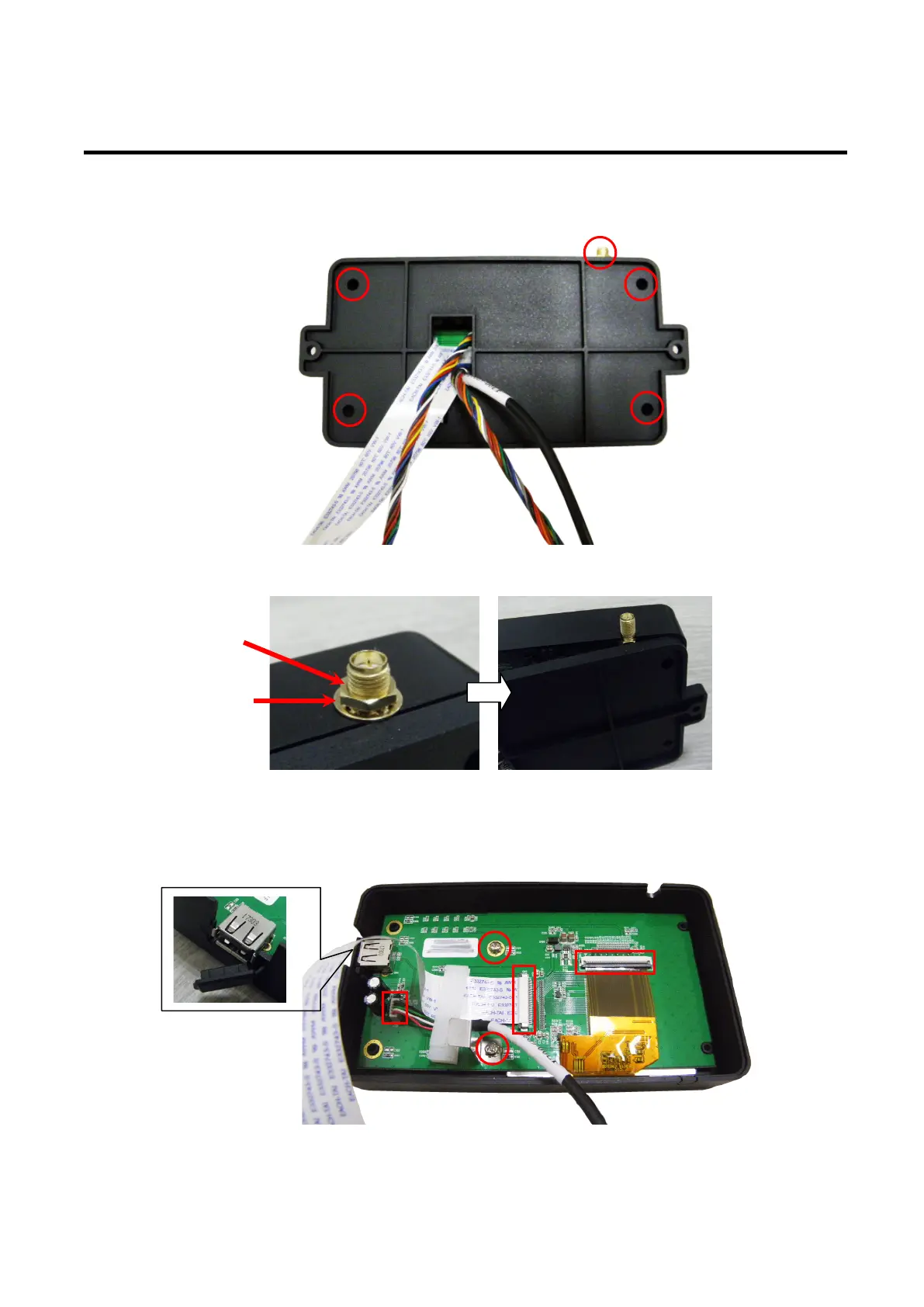

4. Remover four screws and antenna antenna.
5. Remover the hex nut and washer as shown to open the LCD cover.
6. Remove two screws, three cables and open the USB host cover to replace the panel control board &
LCD panel.
Note:
Please unlock the plug from connect for the flat cable, and carefully pull the flat cable free.
7. Reassemble the parts in the reverse procedures.
Hex nut
Washer
