3.8 Replacing the Panel Control Board & LCD Panel
1. Refer to section 3.3, 3.4 and 3.5 to remove the electronics cover, power supply unit and interface
unit.

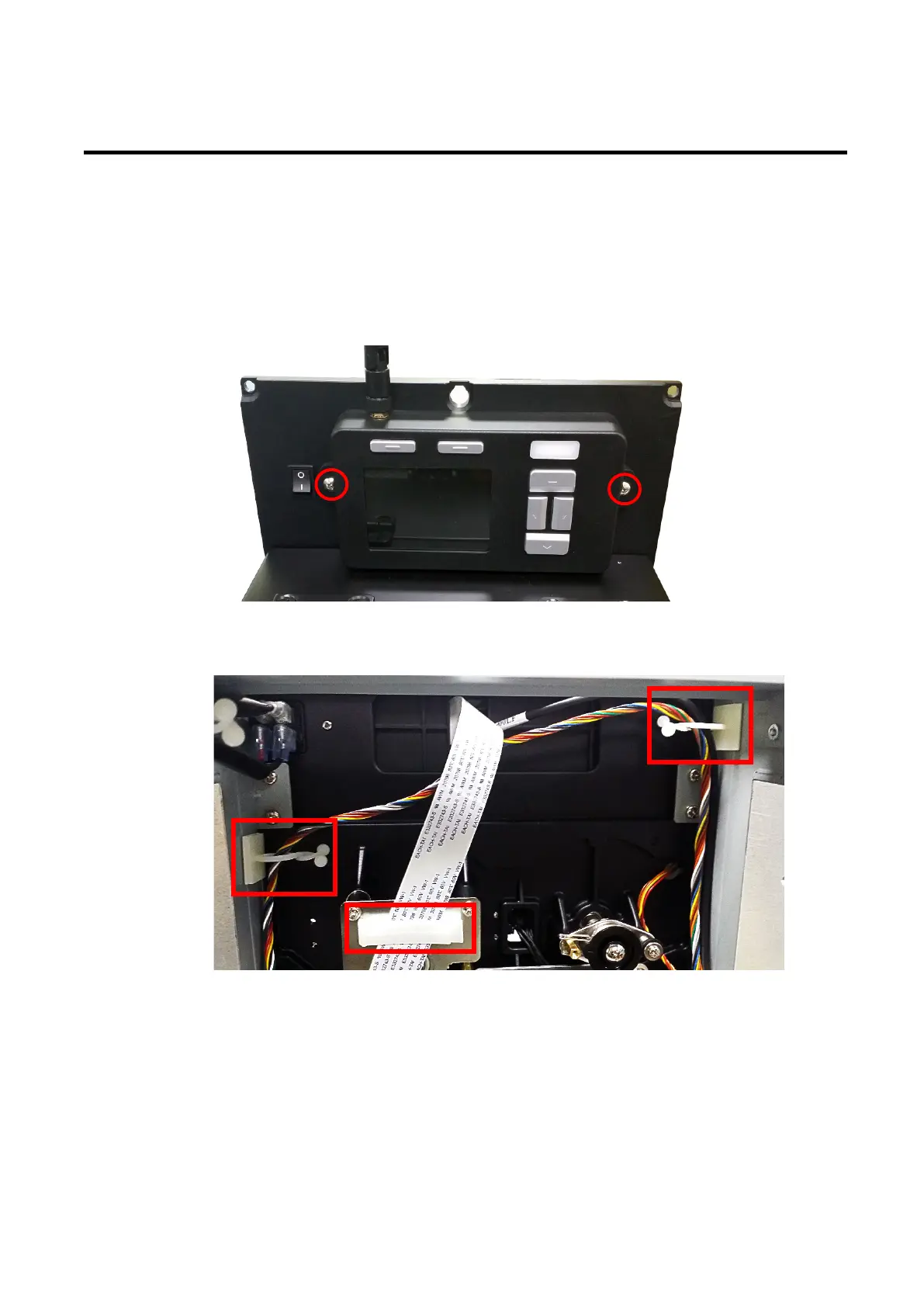

2. Remove the marked fix LCD panel module two screws.
3. Loosen cable ties to remove the LCD panel assembly.
