21
21
PEX-1000 Series
Print
Engine Service Manual

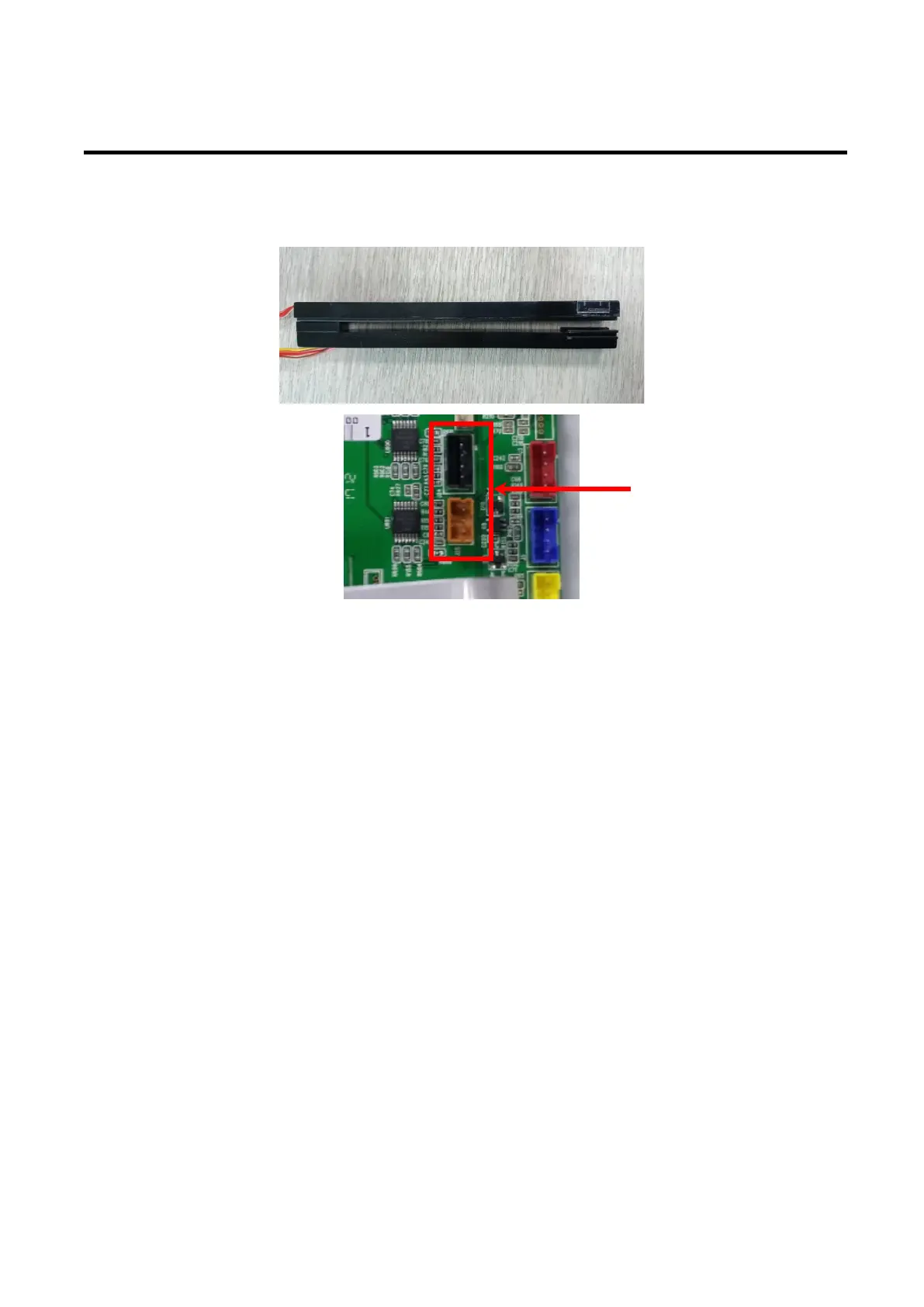

4. Remove/Replace the gap/black mark sensor.
5. Reassemble the parts in the reverse procedures.
Gap/black mark
sensor connectors
