3.7 Replacing the Gap/Black Mark Sensor Module
1. Refer to section 3.6 to remove all connectors on the multi-interface board and main board.

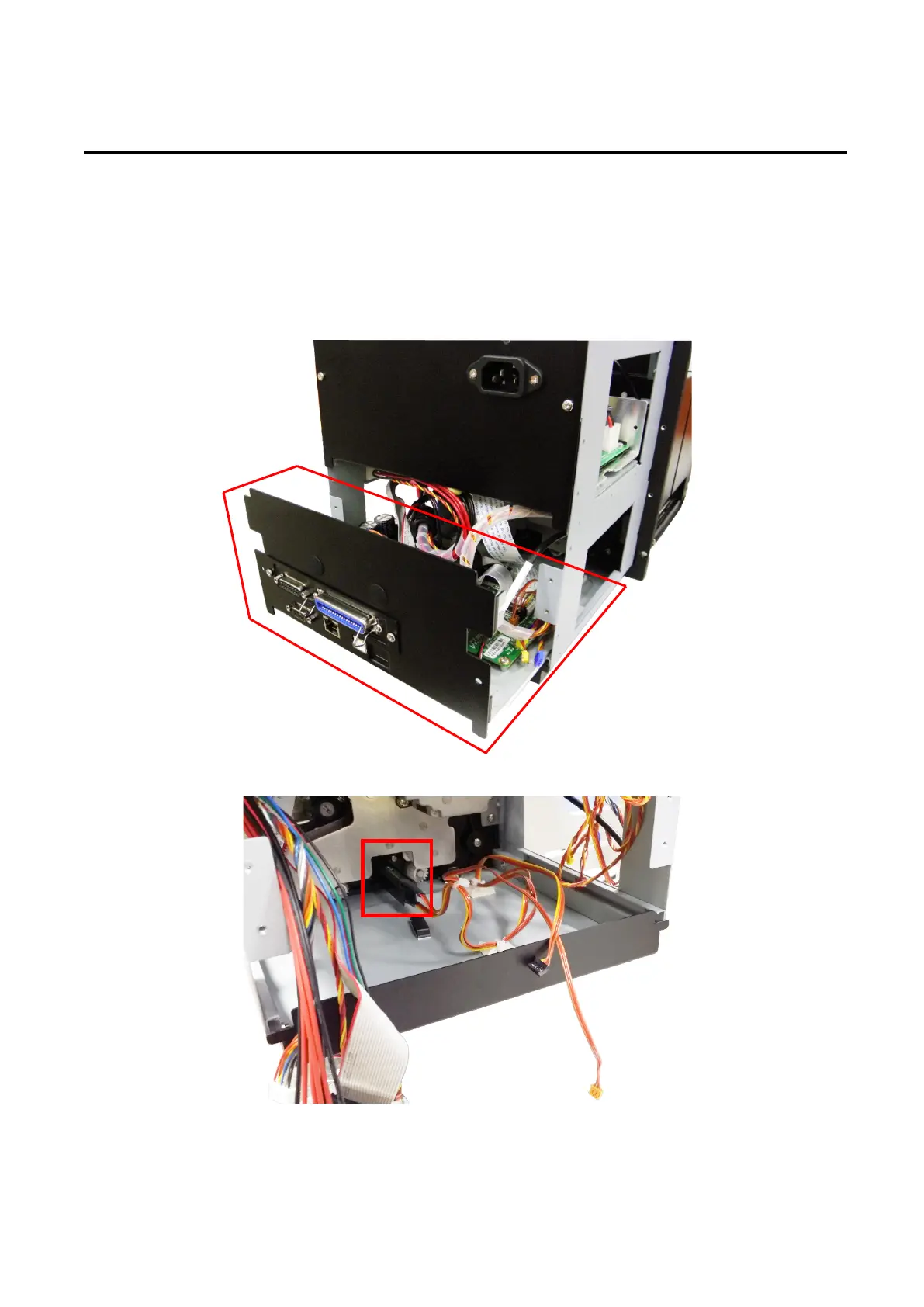

2. Pull the lower drawer (interface unit) and remove it.
3. Pull the media sensor module and loosen the cable ties.
Lower drawer (interface unit)
