TSC PEX-1120 Series User Manual

16
16
PEX-1000 Series
Print
Engine Service Manual

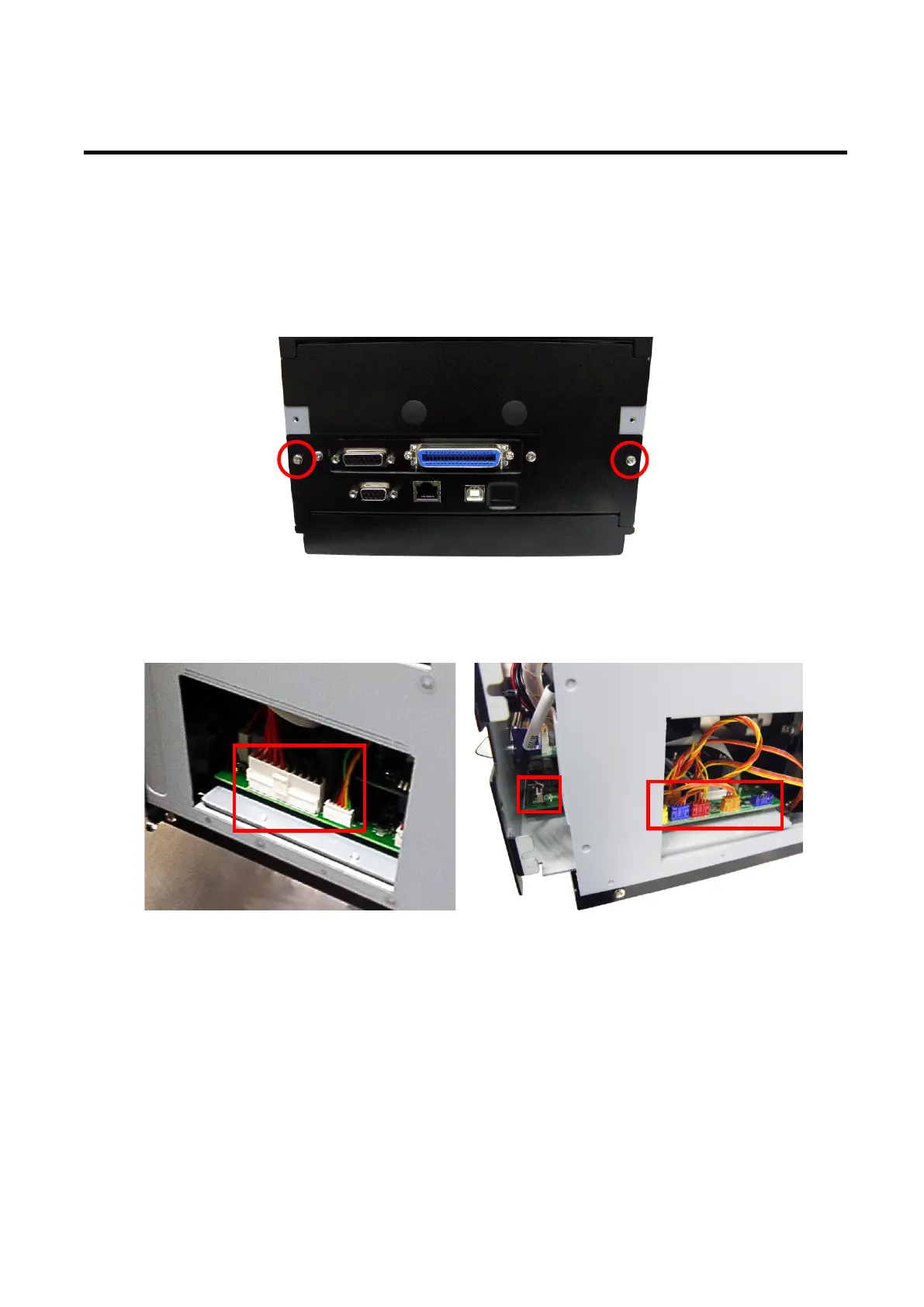

3.5 Replacing Multi-interface (GPIO & parallel) Board
1. Refer to section 3.3 to remove the electronics cover.
2. Remove two screws on main board cover.
3. Disconnect the connectors as below shown first then disconnect all connectors on the main board to
take out the main board unit.
