8
8
PEX-1000 Series
Print
Engine Service Manual

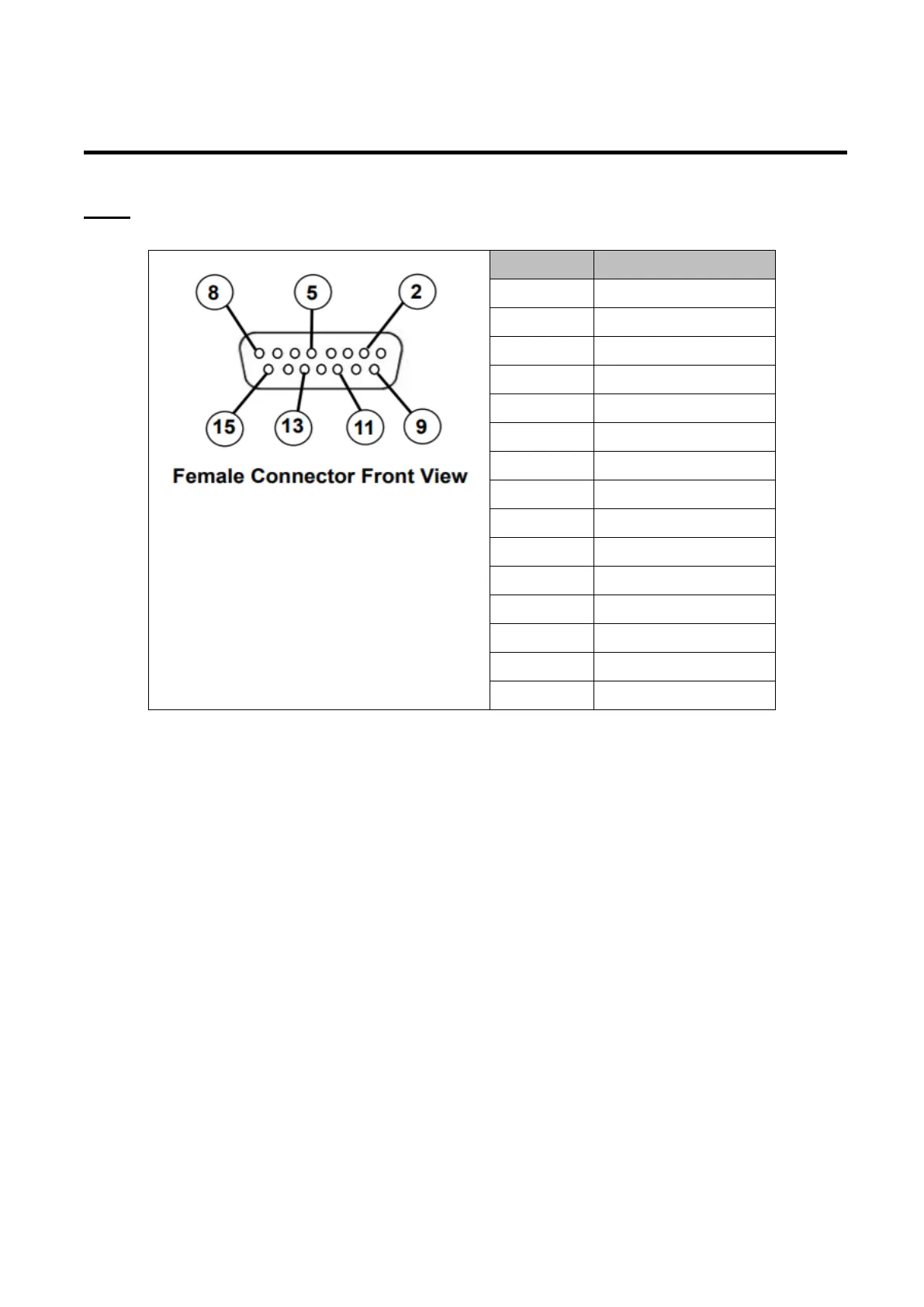

GPIO (Applicator interface with DB15F connector +5V I/O)
Pin
CONFIGURATION
1
GND
2 5V(JP2 short)
3
GPI_1
4 GPI_2
5
GPI_3
6 GPI_4
7
24V
8 GND
9
GPO_1
10 GPO_2
11
GPO_3
12 GPO_4
13
GPO_5
14 GPO_6
15
GPO_7
