TSC PRINTRONIX AUTO ID TC200 Series User Manual

46

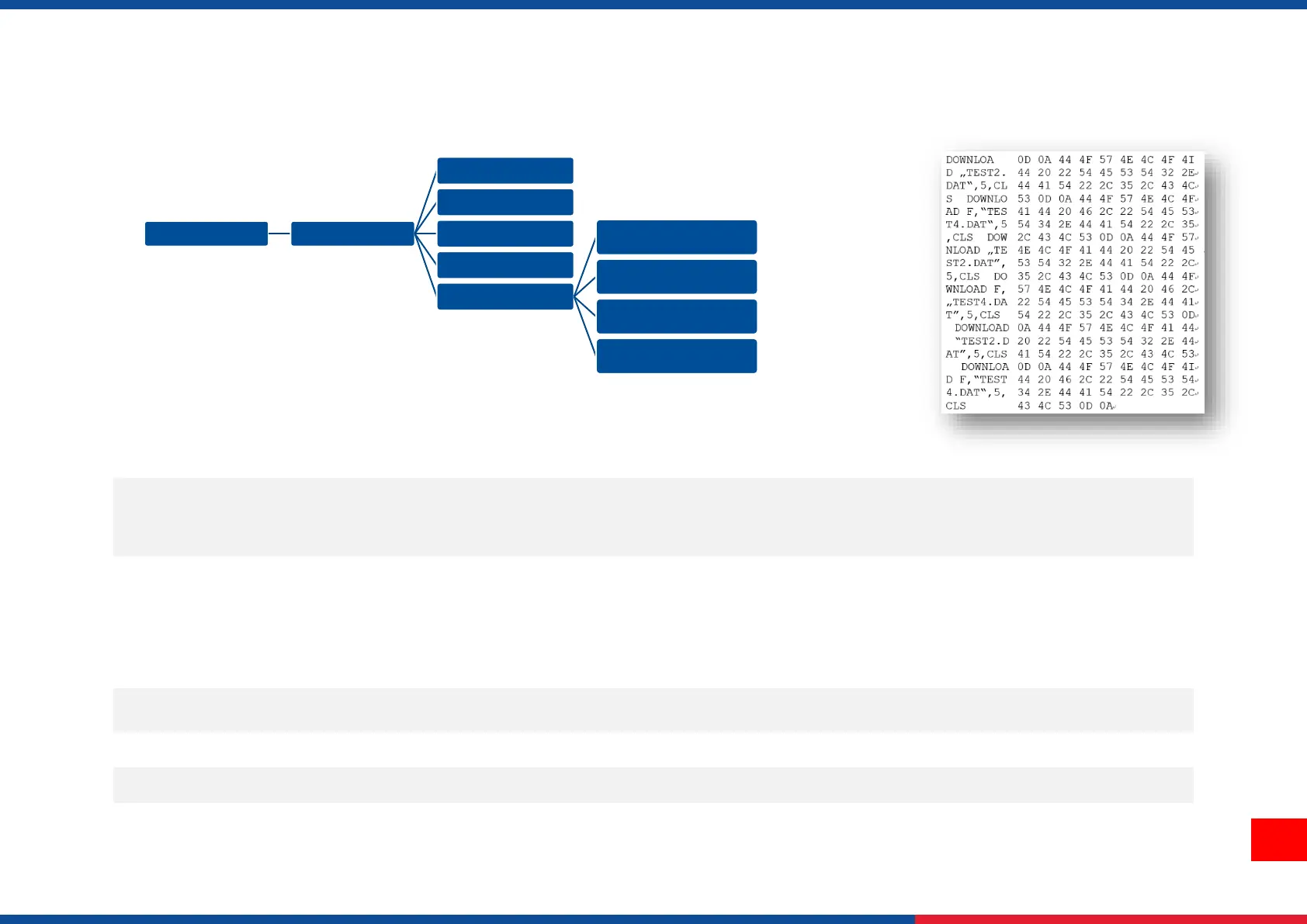

6.8 Diagnostic
Item
Description
Print Config.
Print current printer configuration to the label. The configuration printout contains print head test pattern, which is useful
for checking the dot damage on the print head heater.
Dump Mode
Captures the data from the communications port and prints out the data received by printer. In the dump mode, all
characters will be printed in 2 columns. The left side characters are received from your system and right side data are
the corresponding hexadecimal value of the characters. It allows users or engineers to verify and debug the program.
Dump mode requires 4” wide paper width.
Print Head
Check print head’s temperature and bad dots.
Display
Check LCD’s color state.
Sensor
Check sensors intensity and reading state.
Menu Diagnostic
Print Config.
Dump Mode
Print Head
Display
Sensor
Diag Gap
Diag Black Mark
Diag Ribbon End
Diag Media

TSC PRINTRONIX AUTO ID TC200 Series Specifications

General

Print Technology	Thermal Transfer / Direct Thermal
Resolution	203 dpi (8 dots/mm)
Operating Temperature	41°F to 104°F (5°C to 40°C)
Storage Temperature	-4°F to 140°F (-20°C to 60°C)
Print Speed	6 IPS (152 mm/s)
Max Print Width	4.09" (104 mm)
Connectivity	USB 2.0, RS-232
Media Handling	fan-fold, continuous
Media Type	Roll-fed or fan-fold
Media Width	1.0 to 4.64 inches
Media Core Diameter	1 inch (25.4 mm) or 1.5 inches (38.1 mm)
Media Max Roll Diameter	5 inches (127 mm)
Ribbon Width	1.57 inches (40 mm) to 4.33 inches (110 mm)
Ribbon Core Diameter	0.5 inches
Ribbon Length	984 feet (300 meters)
Power	100-240V AC, 50-60 Hz
Supported Barcode Types	Data Matrix, QR Code
