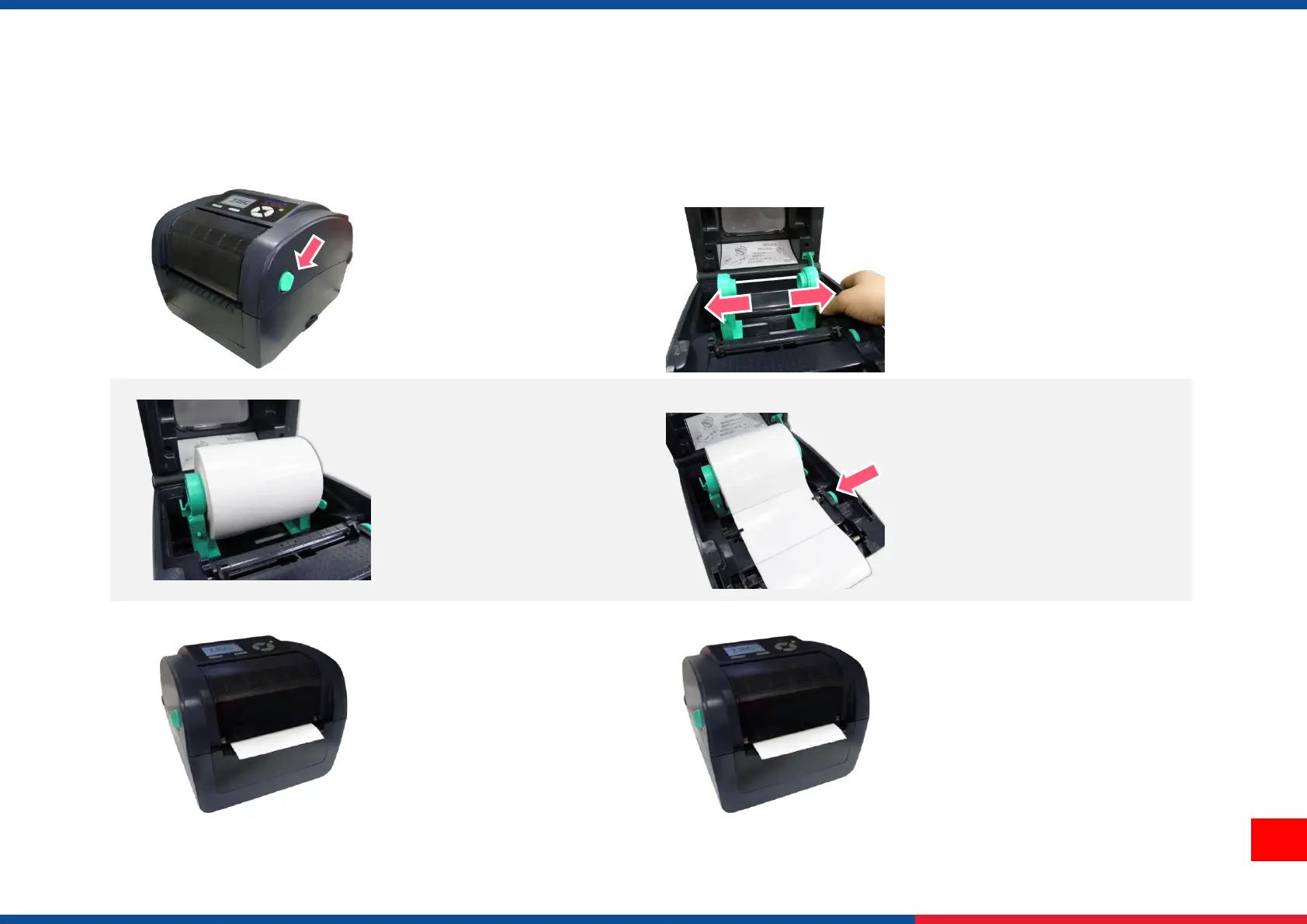

3.4 Loading the Media
1. Open the printer’s top
cover and lift the top
cover to the maximum
open angle.
2. Separate and hold open the
media holders.
3. Place the roll between
the holders and close
them onto the core.
4. Place the paper, printing
side face up, through the
media sensor and place the
label leading edge onto the
platen roller. Move the
media guides to fit the label
width by turning the guide
adjuster knob.
5. Close the top cover
gently.
6. Use software or LCD menu
function to set the media
sensor type and calibrate
the selected sensor. (refer
to chpter 4&5)
To Next Page
