14

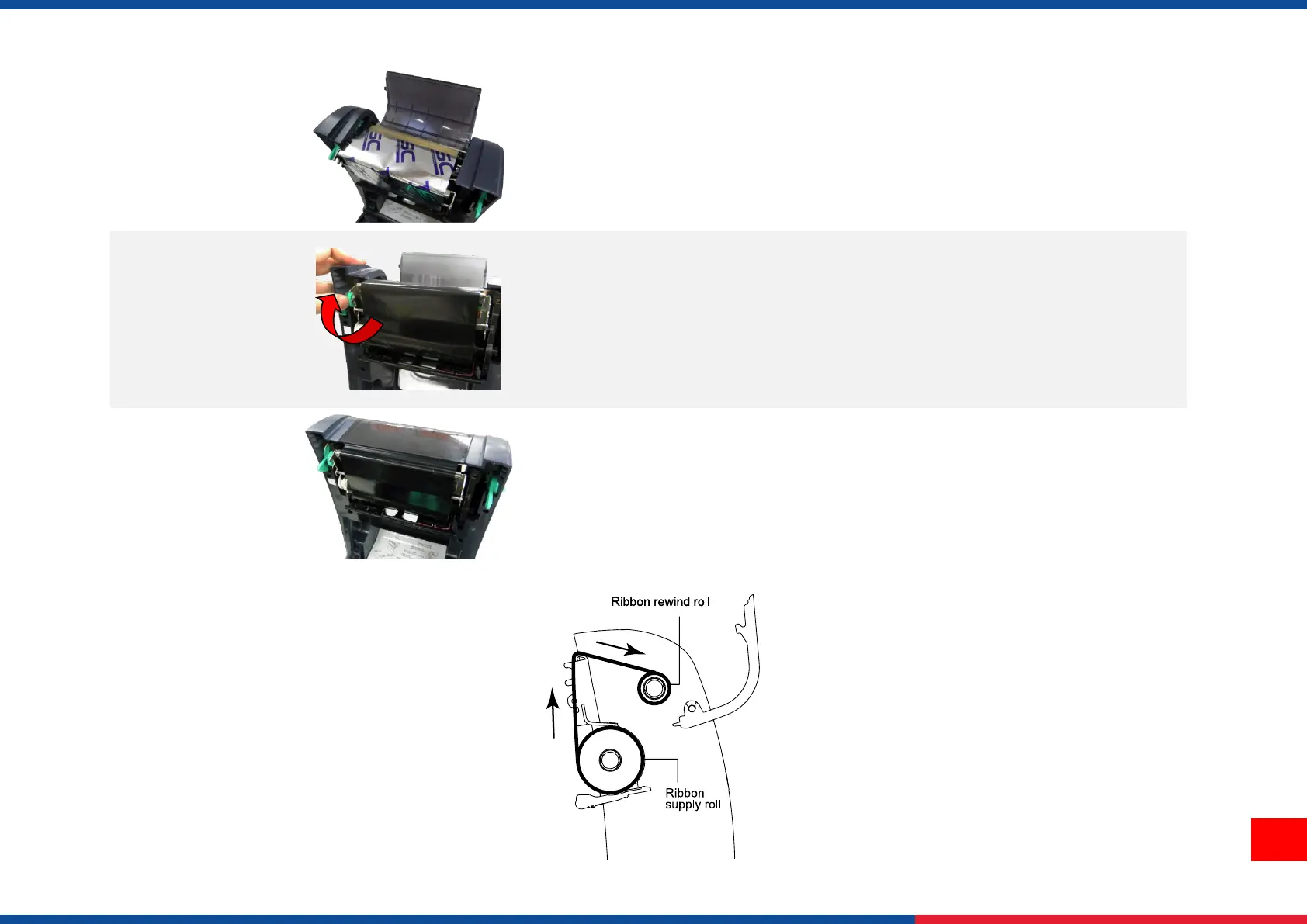

5. Stick the ribbon onto the ribbon rewind paper core.
6. Turn the ribbon rewind gear until the ribbon plastic
leader is thoroughly wounded and the black section
of the ribbon covers the print head.
7. Close the ribbon access cover and the top cover.
Loading path for ribbon
