TSC PRINTRONIX AUTO ID TC200 Series User Manual

20

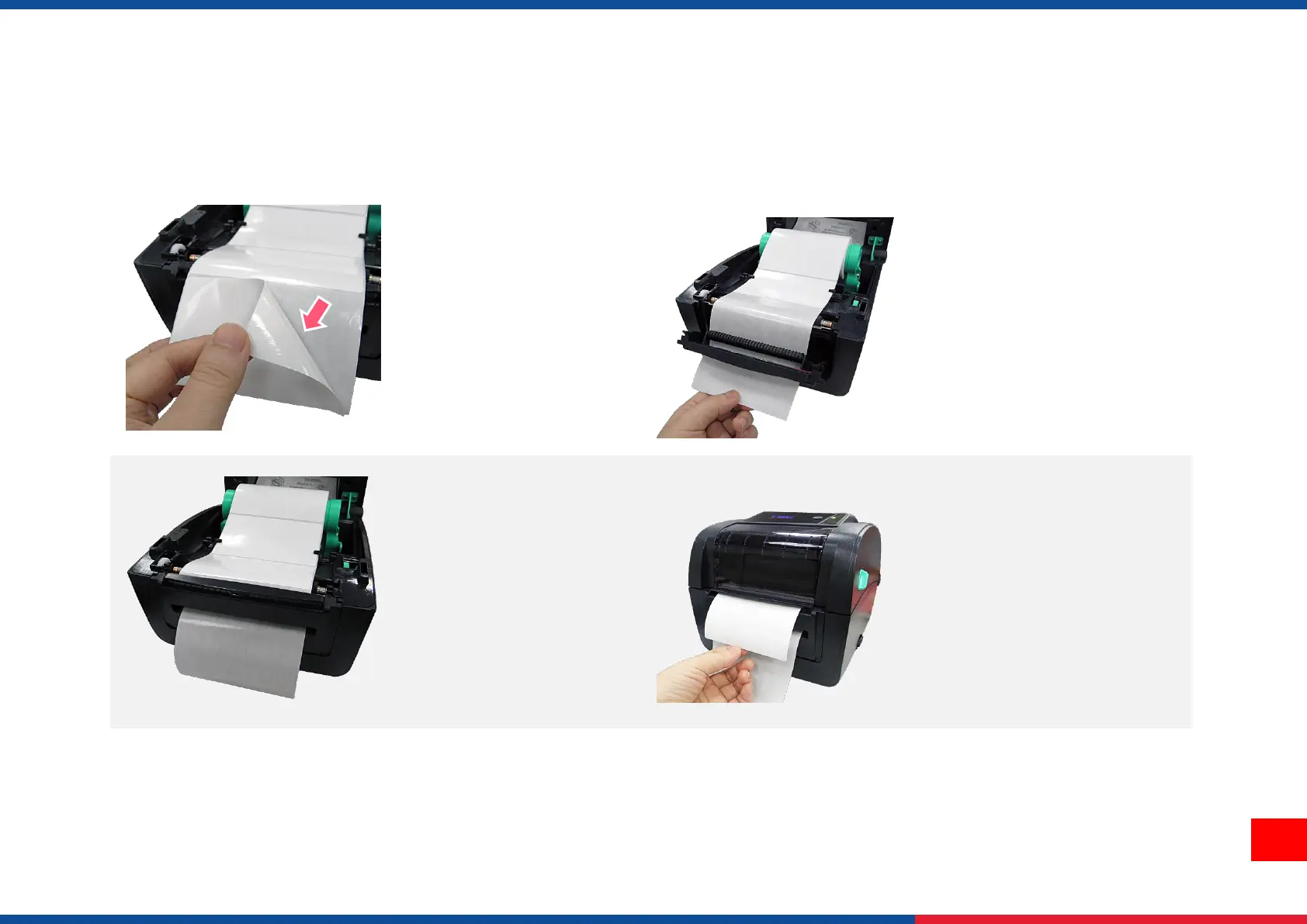

3.7 Loading Label in Peel-Off Mode (Option)
1. Refer section 3.3 to
load the media, then
pull the label through
the front of the printer
and take some labels
off only leave the liner.
2. Open the peel-off module
cover. Feed the liner into
peel-off cover slot.
3. Close the peel-off
module. Use software
or LCD menu function
to enable the peel-off
mode.
4. Disengage the top cover
support to close the top
cover. Printer is ready for
peel-off mode.

TSC PRINTRONIX AUTO ID TC200 Series Specifications

General

Print Technology	Thermal Transfer / Direct Thermal
Resolution	203 dpi (8 dots/mm)
Operating Temperature	41°F to 104°F (5°C to 40°C)
Storage Temperature	-4°F to 140°F (-20°C to 60°C)
Print Speed	6 IPS (152 mm/s)
Max Print Width	4.09" (104 mm)
Connectivity	USB 2.0, RS-232
Media Handling	fan-fold, continuous
Media Type	Roll-fed or fan-fold
Media Width	1.0 to 4.64 inches
Media Core Diameter	1 inch (25.4 mm) or 1.5 inches (38.1 mm)
Media Max Roll Diameter	5 inches (127 mm)
Ribbon Width	1.57 inches (40 mm) to 4.33 inches (110 mm)
Ribbon Core Diameter	0.5 inches
Ribbon Length	984 feet (300 meters)
Power	100-240V AC, 50-60 Hz
Supported Barcode Types	Data Matrix, QR Code
