TA210/ TA310/ TA200/ TA300
Bar Code Printer Service Manual
11

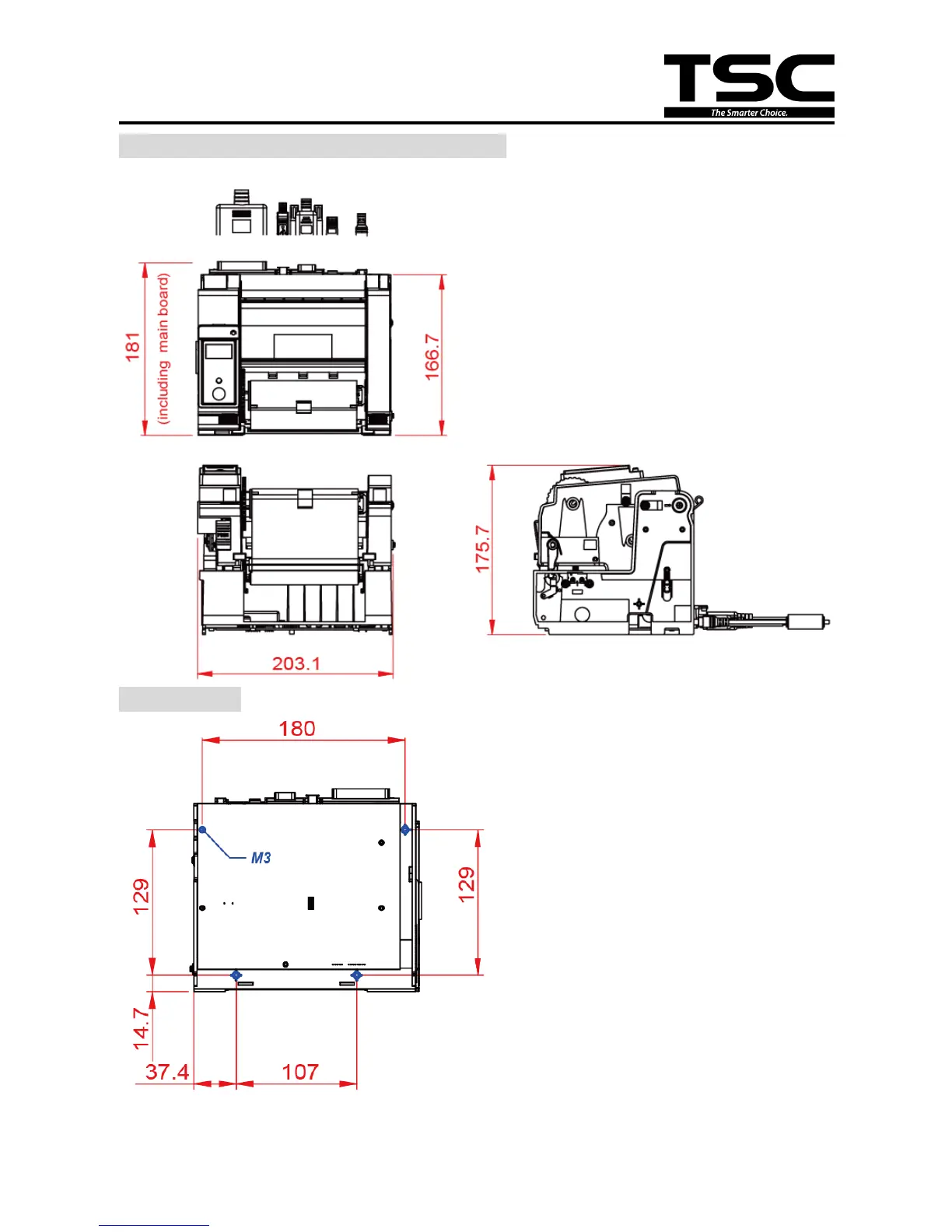

Print engine mechanism measurements
Bottom view
Centronics
(Option)
USB
RS-232
(Option)
Ethernet
(Option)
Power
Note:
1. All measurements are in mm.
2. There are 4 fastenings in this print engine
mechanism, the fastening location be
marked in blue on bottom view drawing,
fits with screw M3.
