TE200/TE210/TE300/TE310 Series
Bar Code Printer Service Manual

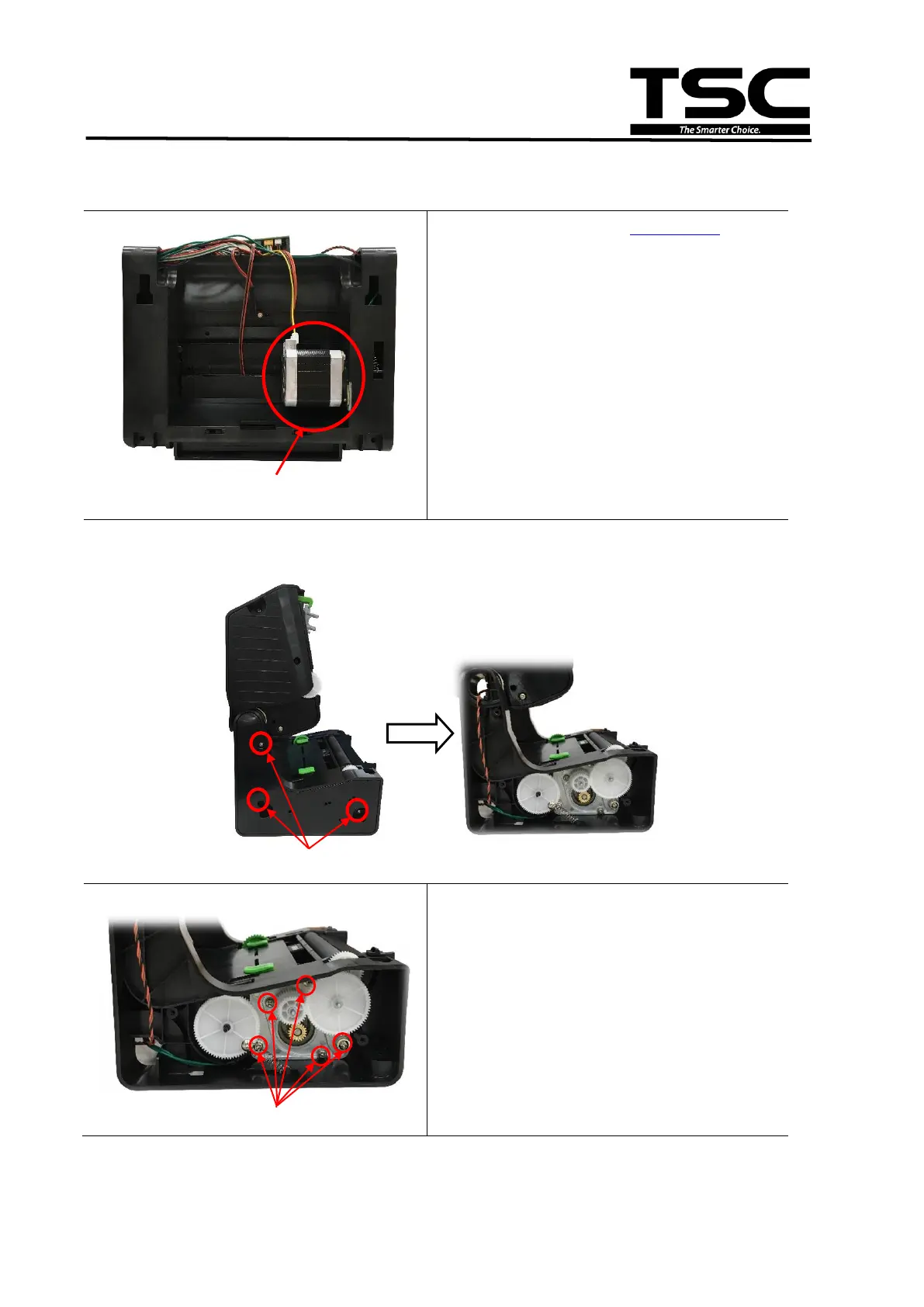

3.3 Replacing the Stepping Motor Module
1. Please refer to the section 3.1 to
remove the print engine mechanism.
2. Turn the print engine mechanism
upside down and the stepping motor
is installed below as indicated.
3. Remove the three screws on the left side lower cover and open it.
4. After the stepping motor left side
lower cover opened, please remove
the five screws as indicated to
disengage the stepping motor
module.
Screws
Screws
Stepping Motor
