TE200/TE210/TE300/TE310 Series
Bar Code Printer Service Manual

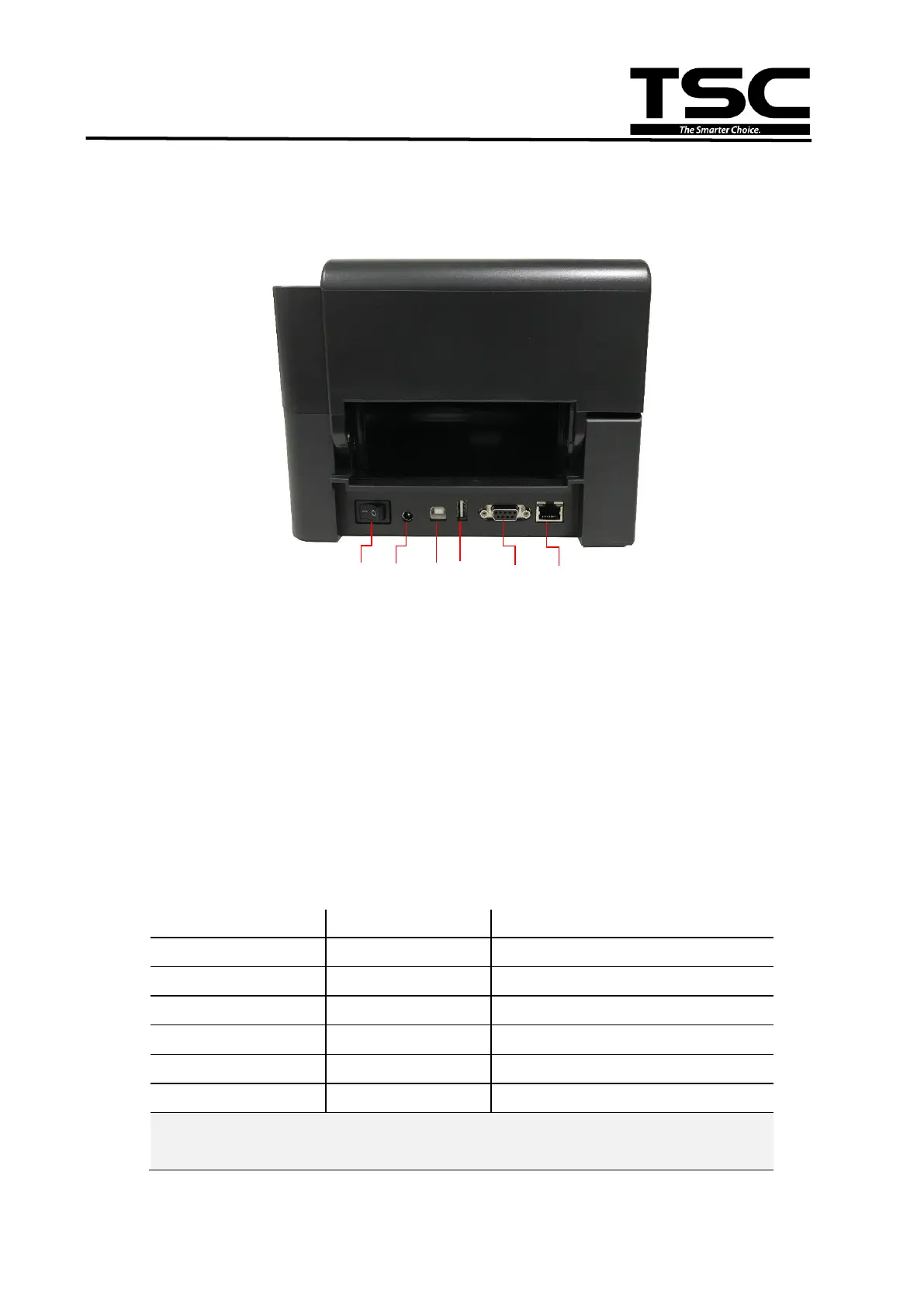

1.3 Rear View
1. Power switch
2. Power jack socket
3. USB interface (USB 2.0/Full speed mode)
4. USB host (TE210/TE310 Series only)
5. RS-232 interface (TE210/TE310 Series only)
6. Ethernet interface (TE210/TE310 Series only)
Note:
The interface picture here is for reference only. Please refer to the product specification for
the interfaces availability.
* Recommended SD card specification.
SD card spec
SD card capacity
Approved SD card manufacturer
V1.0, V1.1
microSD 128 MB
Transcend, Panasonic
V1.0, V1.1
microSD 256 MB
Transcend, Panasonic
V1.0, V1.1
microSD 512 MB
Panasonic
V1.0, V1.1
microSD 1 GB
Transcend, Panasonic
V2.0 SDHC CLASS 4
microSD 4 GB
Panasonic
V2.0 SDHC CLASS 6
microSD 4 GB
Transcend
- The DOS FAT file system is supported for the SD card.
- Folders/files stored in the SD card should be in the 8.3 filename format.
1
2
3
6
5
4

TSC TE310 Series Specifications

General

Resolution	203 dpi / 300 dpi
Print Method	Thermal transfer / Direct thermal
Interface	Ethernet
Power Supply	AC 100-240V, 50/60Hz
Operating Temperature	41°F to 104°F (5°C to 40°C)
Storage Temperature	-40 ~ 60°C (-40 ~ 140°F)
Humidity	20% to 85% (non-condensing)
