TSC TE310 Series Service Manual

28
TE200/TE210/TE300/TE310 Series
Bar Code Printer Service Manual

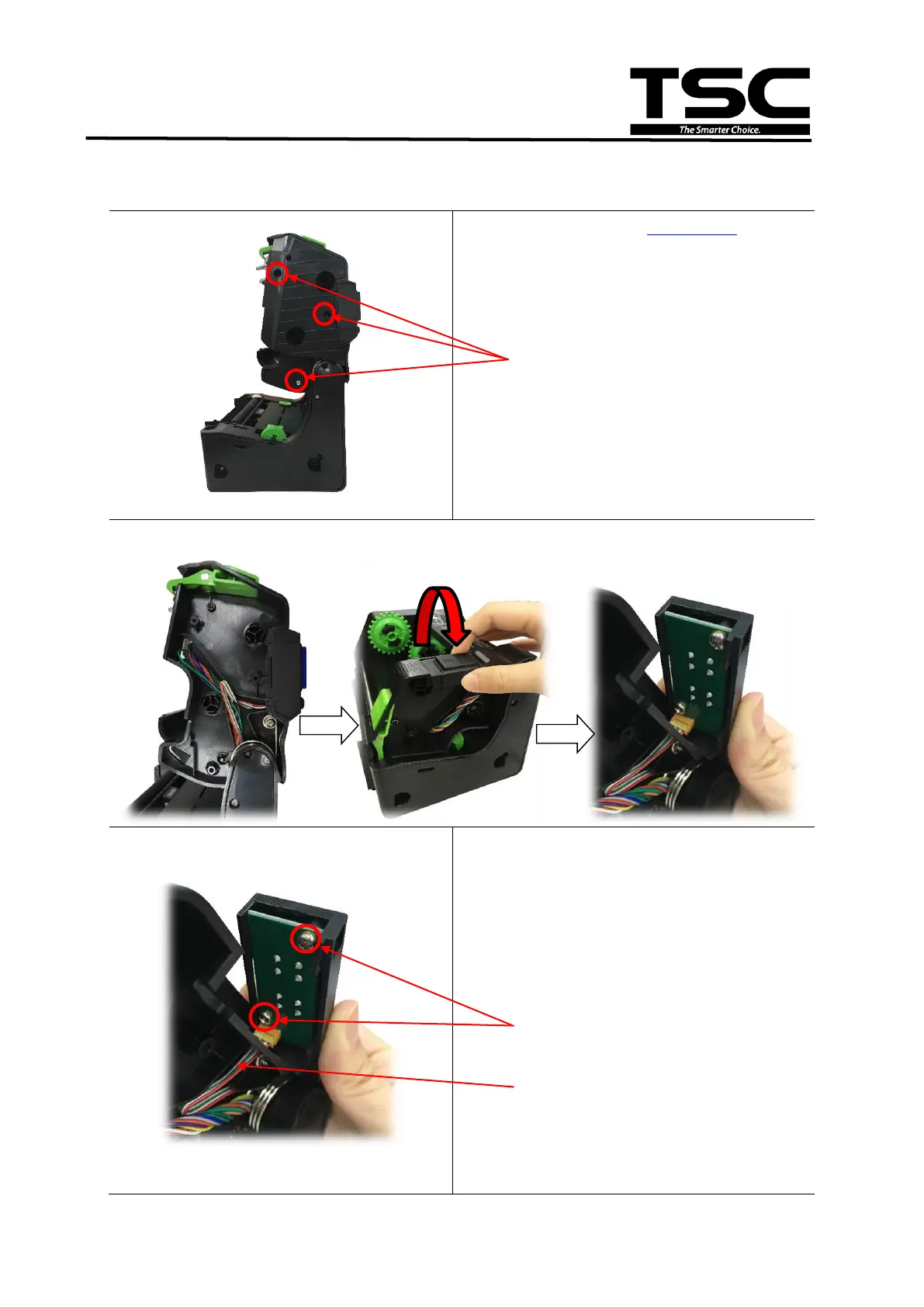

3.10 Replacing the Key Module (LED Module/Option)
1. Please refer to the section 3.1 to take
out the print engine mechanism.
2. Remove the three screws on right
side upper cover and open it.
3. After the right side upper cover opened, please disengage the LED module.
4. Remove the two screws and cable on
the LED key module.
5. Remove/replace the LED key module.
Screws
Screws
Cable
