TSC TE310 Series Service Manual

17
TE200/TE210/TE300/TE310 Series
Bar Code Printer Service Manual

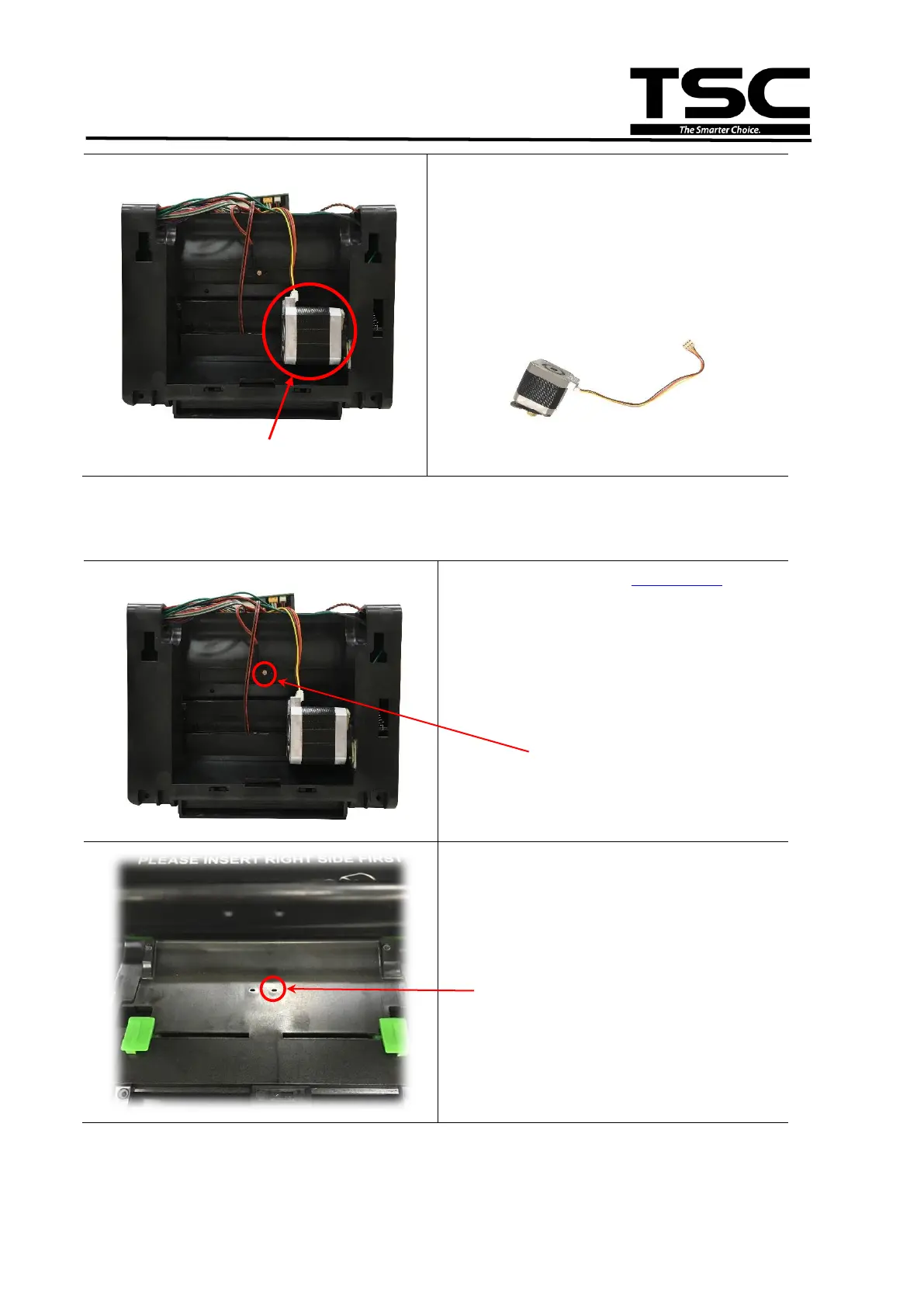

Stepping Motor
5. Disconnect the stepping motor
connectors on the main board.
6. Remove/replace the stepping motor
module.
7. Reassemble the parts in the reverse
procedure.
3.4 Replacing the Gap Sensor Module
1. Please refer to the section 3.1 to
remove the print engine.
2. Turn the print engine upside down
and remove the screw as indicated.
3. Remove/replace the gap sensor
(receiver).
Screw on Gap Sensor
(receiver)
Gap sensor (receiver)
(Fixed position, shift 4 mm to right)
Steeping motor module

TSC TE310 Series Specifications

General

Resolution	203 dpi / 300 dpi
Print Method	Thermal transfer / Direct thermal
Interface	Ethernet
Power Supply	AC 100-240V, 50/60Hz
Operating Temperature	41°F to 104°F (5°C to 40°C)
Storage Temperature	-40 ~ 60°C (-40 ~ 140°F)
Humidity	20% to 85% (non-condensing)
