TSC TE310 Series Service Manual

23
TE200/TE210/TE300/TE310 Series
Bar Code Printer Service Manual

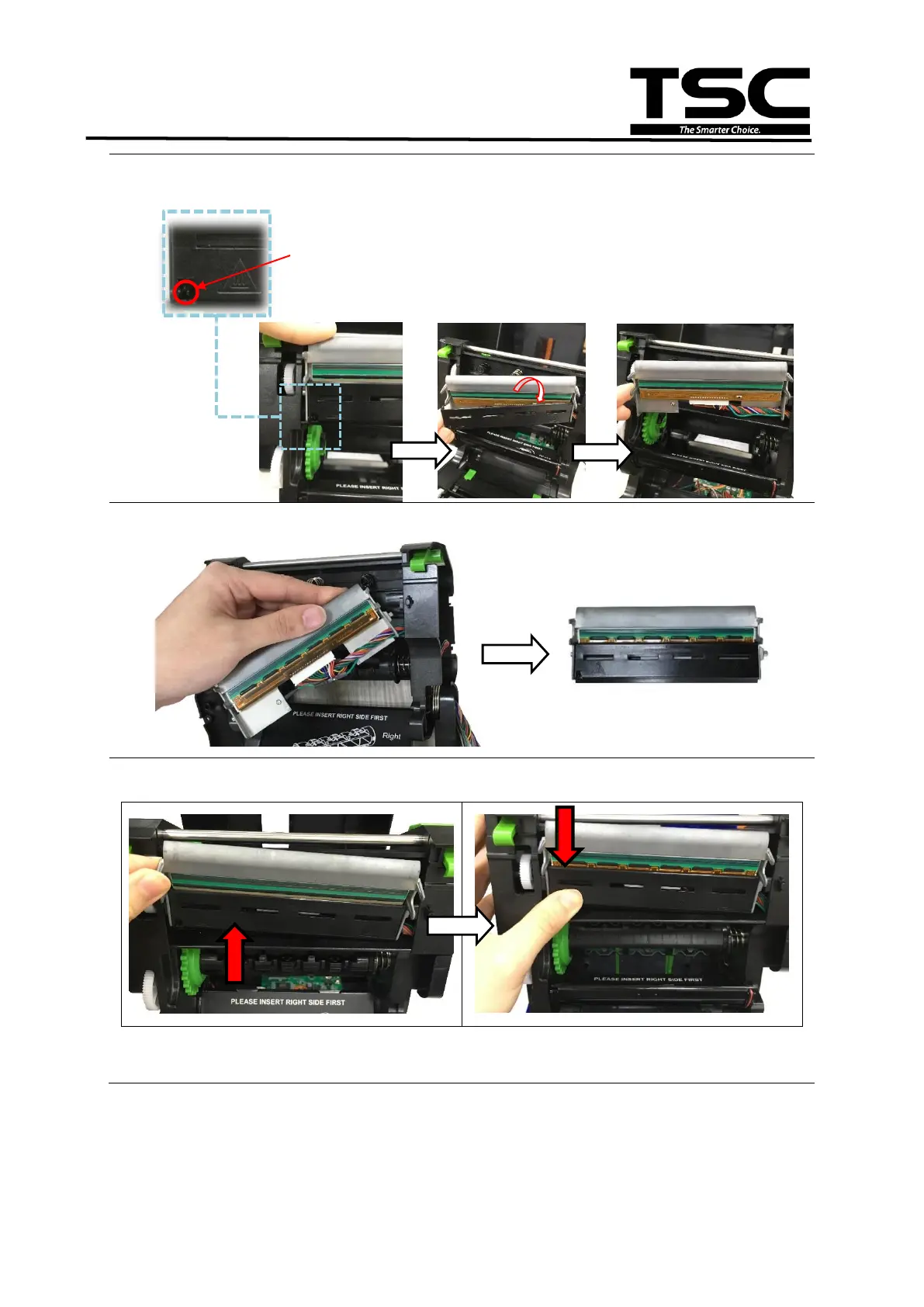

5. Push the front tab of the print head bracket to the right side and open the print
head bracket as pictured.
6. Remove/Replace the print head assembly.
7. Reassemble the parts in the reverse procedures.
Note: If the print quality became poor after changed the print head, please
switch the calibration on the print head engine to adjust the print quality.
Print head assembly
Front tab

TSC TE310 Series Specifications

General

Resolution	203 dpi / 300 dpi
Print Method	Thermal transfer / Direct thermal
Interface	Ethernet
Power Supply	AC 100-240V, 50/60Hz
Operating Temperature	41°F to 104°F (5°C to 40°C)
Storage Temperature	-40 ~ 60°C (-40 ~ 140°F)
Humidity	20% to 85% (non-condensing)
