38
TE200/TE210/TE300/TE310 Series
Bar Code Printer Service Manual

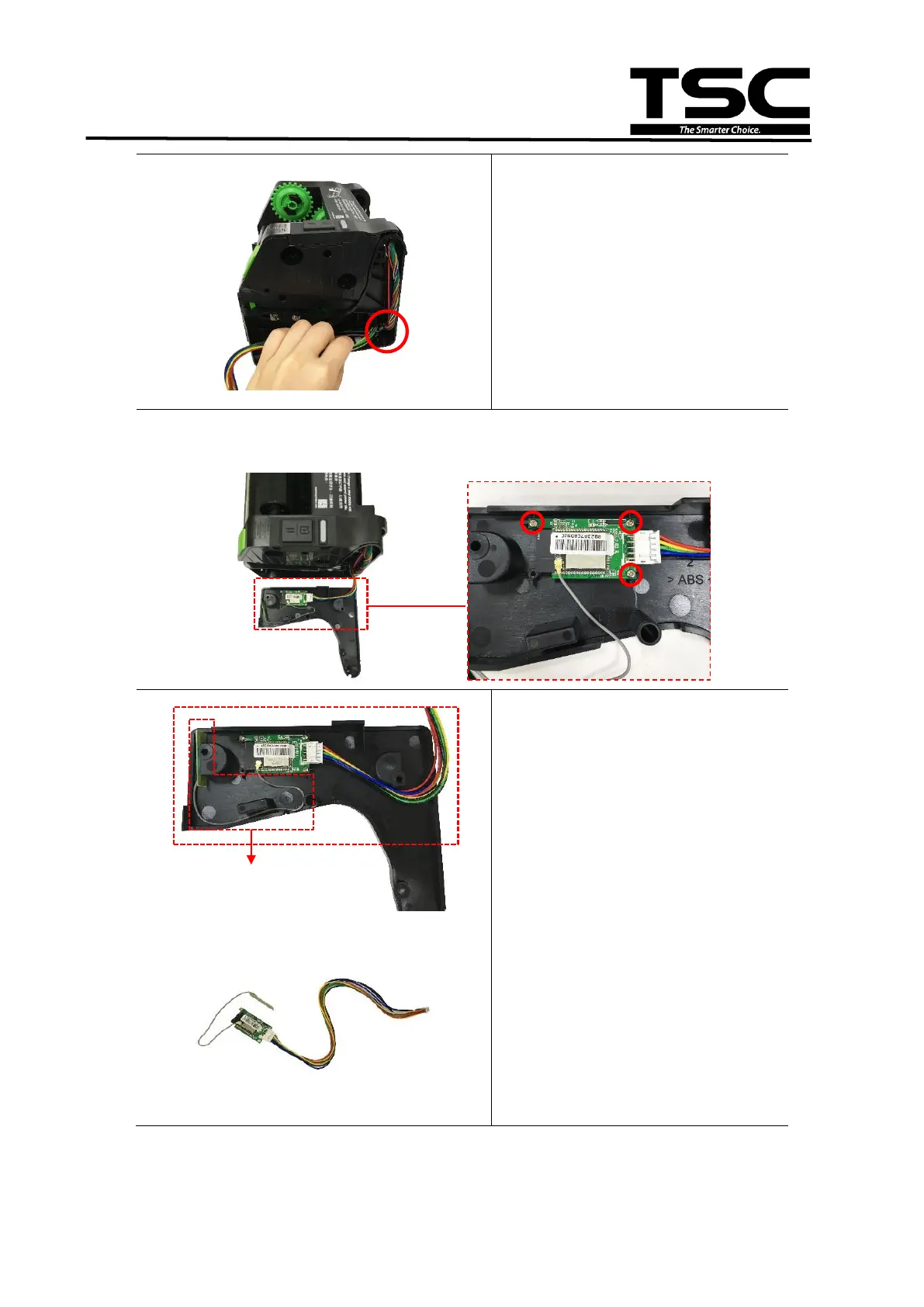

4. Remove the Wi-Fi module
assembly cable through the
hole on print engine right side
cover.
5. Remove the three screws on Wi-Fi module assembly as indicated.
6. Remove/Replace the Wi-Fi module assembly (with antenna).
7. Reassemble the parts in the
reverse procedure.
Note:
1. The Wi-Fi module and bluetooth
are not coexistence.
2. When install the Wi-Fi module
assembly (with antenna), please
follow the cable loading path as
shown.
Wi-Fi module assembly
Wi-Fi module assembly (with
antenna) cable loading path
Antenna with cable
