TSC TE310 Series Service Manual

7
TE200/TE210/TE300/TE310 Series
Bar Code Printer Service Manual

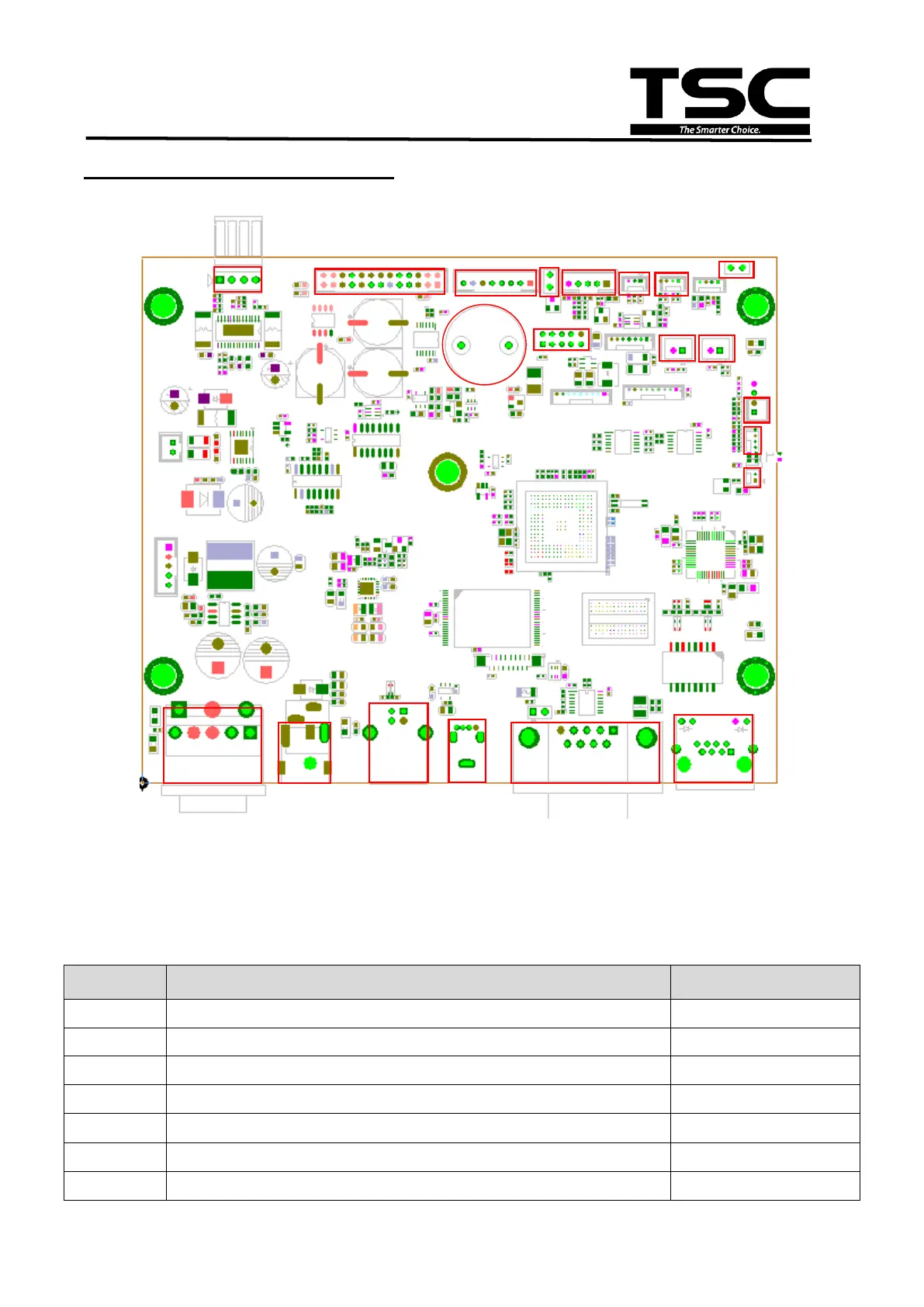

Main board for TE210/TE310 Series
Connector
Description
Remark
1
Power switch connector
SW1
2
Power supply (24V DC) connector
DCIN1
3
USB Device connector
USB1
4
USB Host connector
USB2
5
RS-232C connector
RS1
6
Ethernet connector
LAN1
7
RTC battery connector
BT1
1
2
4
5
7
8
9
12
10
11
14
16
15
17
18
19
20
21
13
3
6

TSC TE310 Series Specifications

General

Resolution	203 dpi / 300 dpi
Print Method	Thermal transfer / Direct thermal
Interface	Ethernet
Power Supply	AC 100-240V, 50/60Hz
Operating Temperature	41°F to 104°F (5°C to 40°C)
Storage Temperature	-40 ~ 60°C (-40 ~ 140°F)
Humidity	20% to 85% (non-condensing)
