TTP-243 Pro/ 243E Pro/ 342 Pro
Bar Code Printer

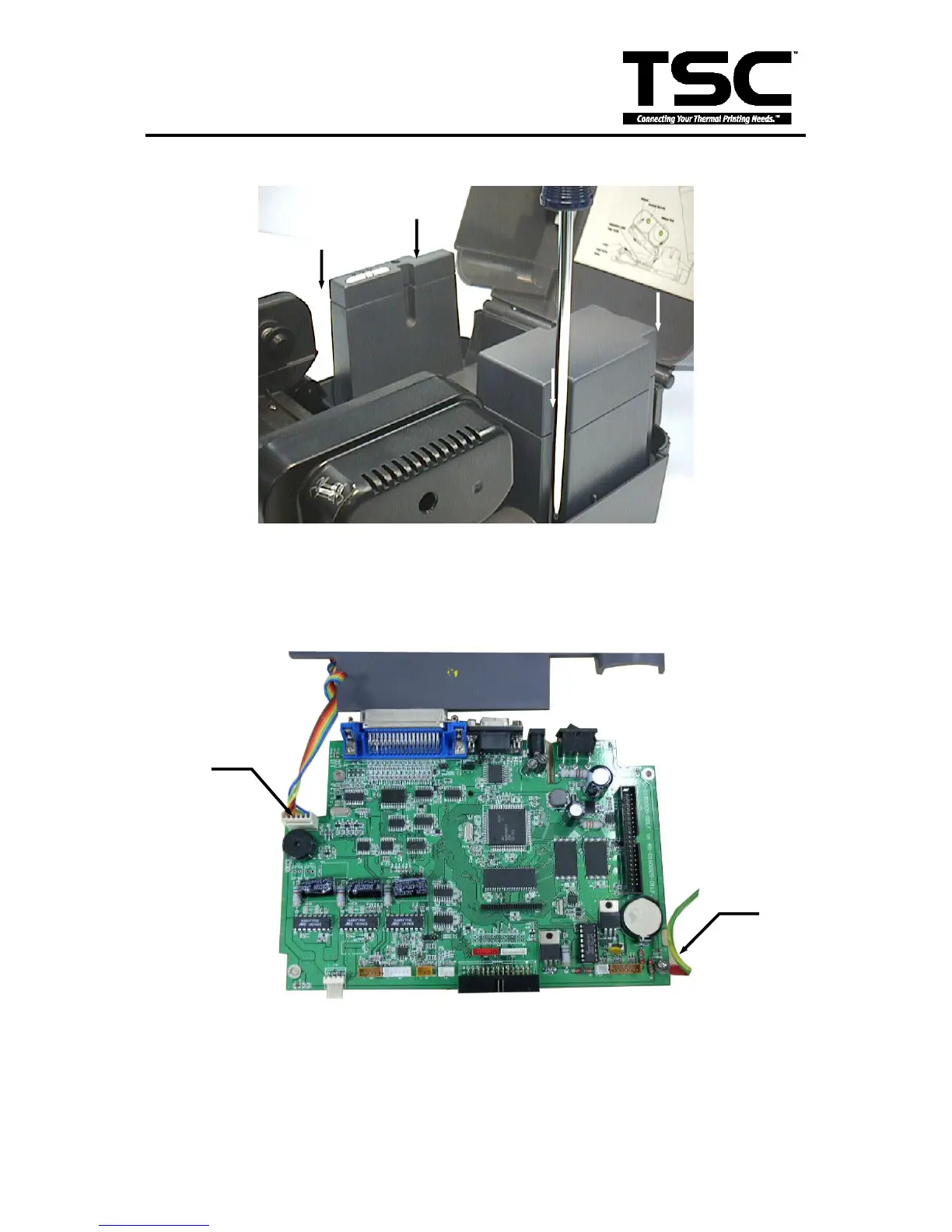

8. Remove the four screws of the internal label roll mount.
Fig. 3.18 Remove screws of the label roll mount
9. Move the mechanism about 5 mm in the label feed direction.
10. Take out the internal label roll mount and remove the connector.
Take out the internal label roll
mount and remove the connector
Ground Wire
Push Button
Connector
