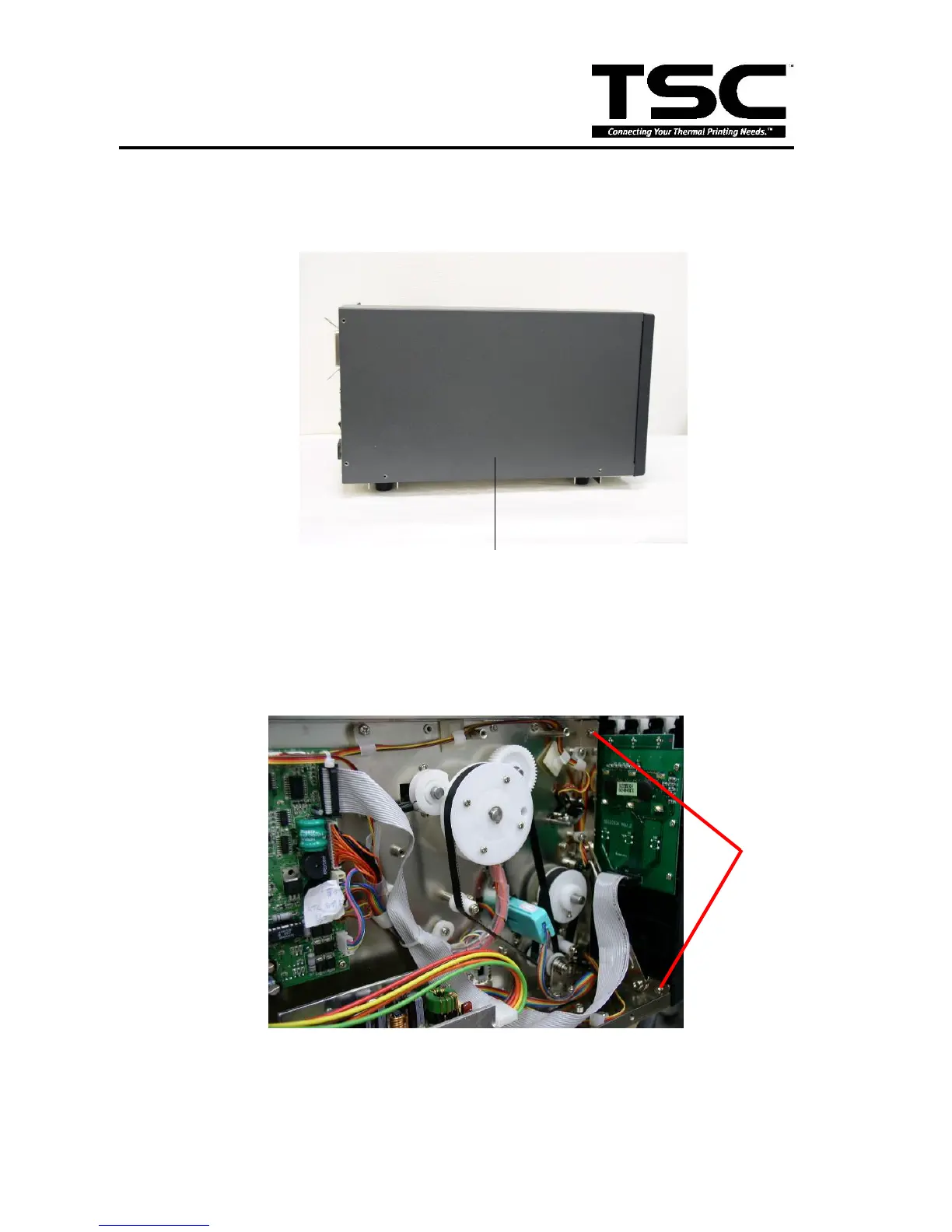

5. Loosen screws on Top Left Side Cover.
6. Remove Left Side Cover.
7. Loosen two screws to separate the LCD panel and Main Frame, remove the
connector from LCD panel, and then remove LCD panel.
Screws
Top Left Side Cover
