TTP-246M/344M Bar Code Printer
Service Manual
4.17 Loading Label For Peel-off Mode

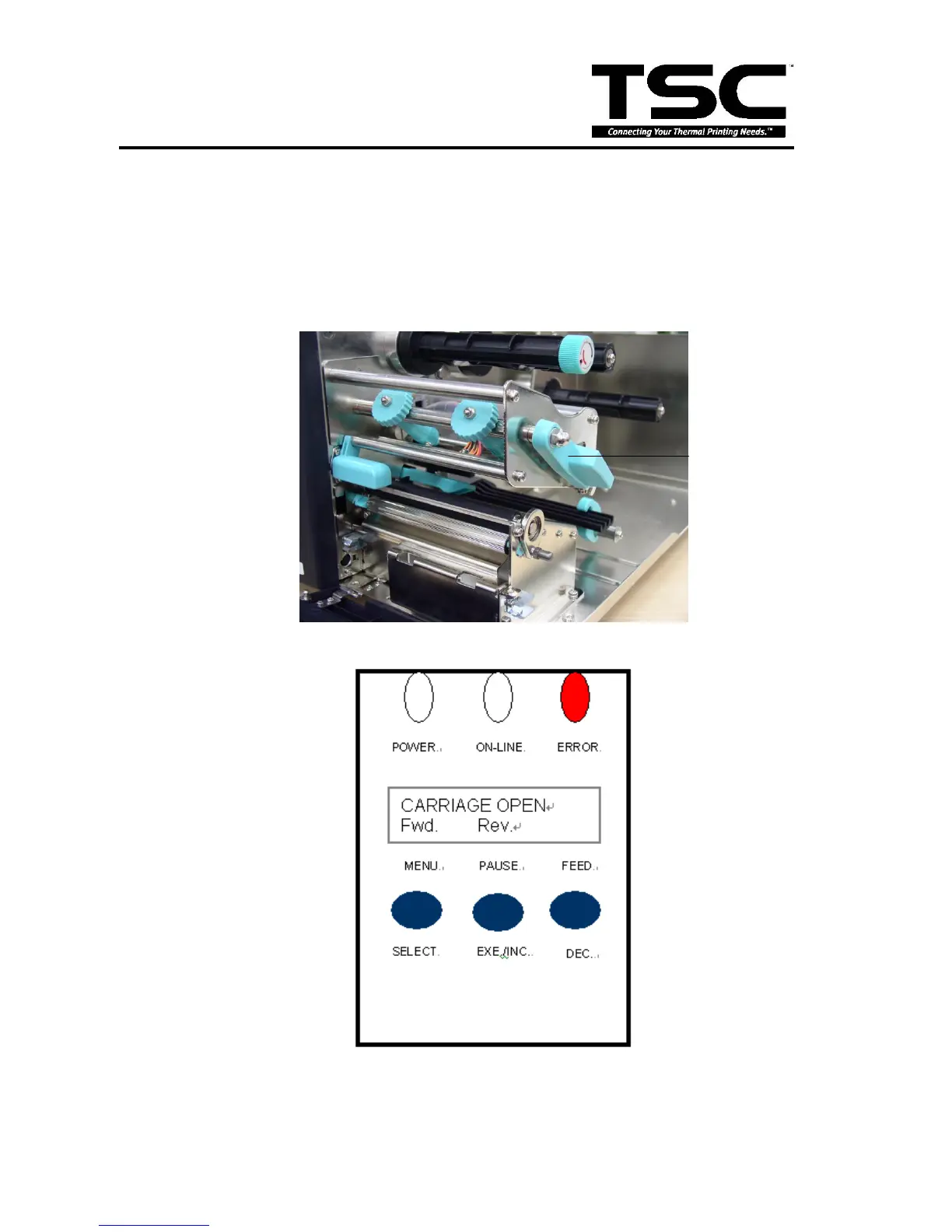

1. Open the Print Head Lift Lever. The message “CARRIAGE OPEN” will be shown on the
LCD screen, and the RED LED is on. The LCD panel shown as below.
2. Remove the first one label from the liner. Insert the liner into the gap between Platen and
Peel-off roller.
Print Head Lift
Lever
