Bar Code Printer
Service Manua
l
4.

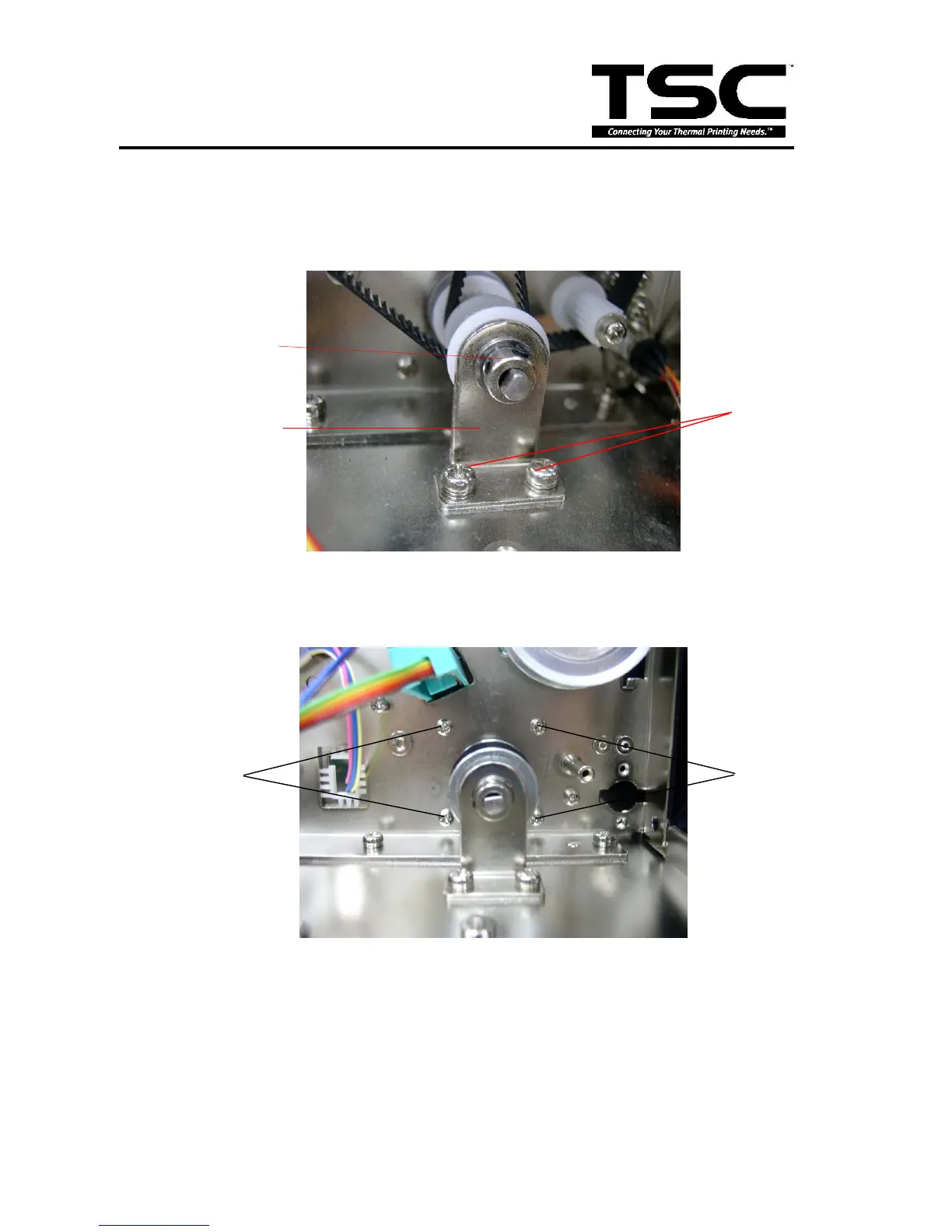

9 Replacing Stepping Motor
1.
Rem
ove S
topper and loosen two screws of Holder
.
2.
Refe
r to section 4.4 to
rem
ove Belts a
nd Holder
.
3.
Lo
osen four fixing
screws on the Motor
.
4.
Rem
ove stepping motor harness from Main PCB.
Holder
S
topper
Scre
ws
Scre
ws
Screws
43
45
Table of Contents
Default Chapter
2
Table of Contents
2
1 Foundamentals about the System
4
Printer Overview
4
Front View
4
Rear View
4
Pinter Specification
5
Available Bar Codes
7
2 Supply Specifications
8
Label Specification
8
Ribbon Specification
8
3 Circuit Description
10
PCB Function
10
MCU PIN Description
12
Reset Circuit
14
Memory Circuit
14
Decoder Circuit and Memory Map
15
Print Head Circuit
18
Motor Circuit
19
Cutter Circuit
19
Parallel Port Circuit
20
Serial Port Circuit
20
USB Circuit
21
Gap/Black Mark Sensor
21
Case Open Sensor
22
Ribbon End Sensor
22
Head Open Sensor
23
Peel-Off Sensor
23
Summary of PCB Connectors
24
TTP-246M & 344M PCB Top Side
25
TTP-246M & 344M PCB Bottom Side
26
4 Mechanism
27
Remove Covers, LCD Panel and Lower Front Panel
27
Replacing the All Harness on Main PCB
31
Replacing Power Supply Unit
32
Replacing Belt and Gears
33
Replacing Ribbon Rewind Spindle
36
TTP-246M/344M Bar Code Printer Service Manua L
36
Replacing Ribbon Supply Spindle
38
Replacing Label Supply Spindle
40
Replacing Platen
42
Replacing Stepping Motor
44
Replacing Print Head
45
Replacing Print Head Adjustment Knob
46
Replacing Gap / Black Mark Sensor
48
Replacing Ribbon Sensor
51
Replacing Print Head Lift Sensor
53
Replacing Internal Print Server Module
54
Peeler Kit Installation (Option)
57
Loading Label for Peel-Off Mode
63
Cutter Module Installation (Option)
66
5 Power on Utilities
67
Calibrate Gap/Black Mark Sensor
67
Self-Test
67
Printer Initialization
68
6 Troubleshooting
70
7 Maintenance
72
Update History
73
Other manuals for TSC TTP 246M
User Manual
33 pages
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the TSC TTP 246M and is the answer not in the manual?
Ask a question
TSC TTP 246M Specifications
General
Brand
TSC
Model
TTP 246M
Category
Barcode Reader
Language
English
Related product manuals
TSC TTP-246M Pro
2 pages
TSC TTP-2410M
79 pages
TSC TTP-245 Plus
50 pages
TSC TTP-244 Plus
29 pages
TSC TTP-244M Pro
35 pages
TSC TTP 243 Plus
56 pages
TSC TTP-243 Series
29 pages
TSC TTP-2410MT Series
87 pages
TSC TTP-243 Pro Series
39 pages
TSC Prontronix TTP-244CE
36 pages
TSC TTP-268M
85 pages
TSC TTP-2610MT Series
68 pages
