TTP-246M/344M Bar Code Printer
Service Manual

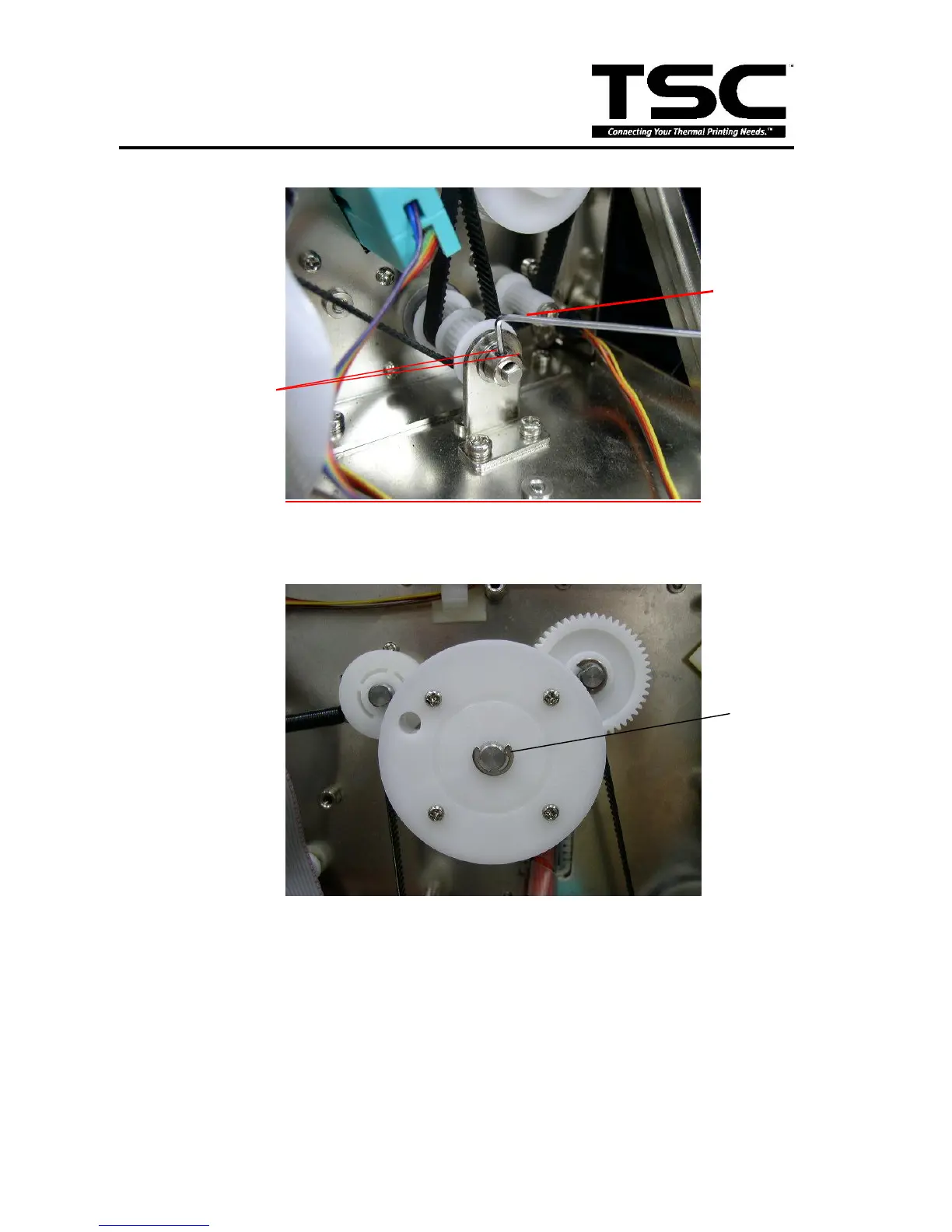

5. Remove the belts.
6. Remove the outer E-ring of the spindle. Then move the pulley.
7. Remove the outer E-ring of the Ribbon rewind spindle. Then move the gear.
2 black Inner
hexagon bolt
head
1.5 mm hex
wrench
outer E-ring of
the Ribbon
rewind spindle
