TTP-246M/344M Bar Code Printer
Service Manual

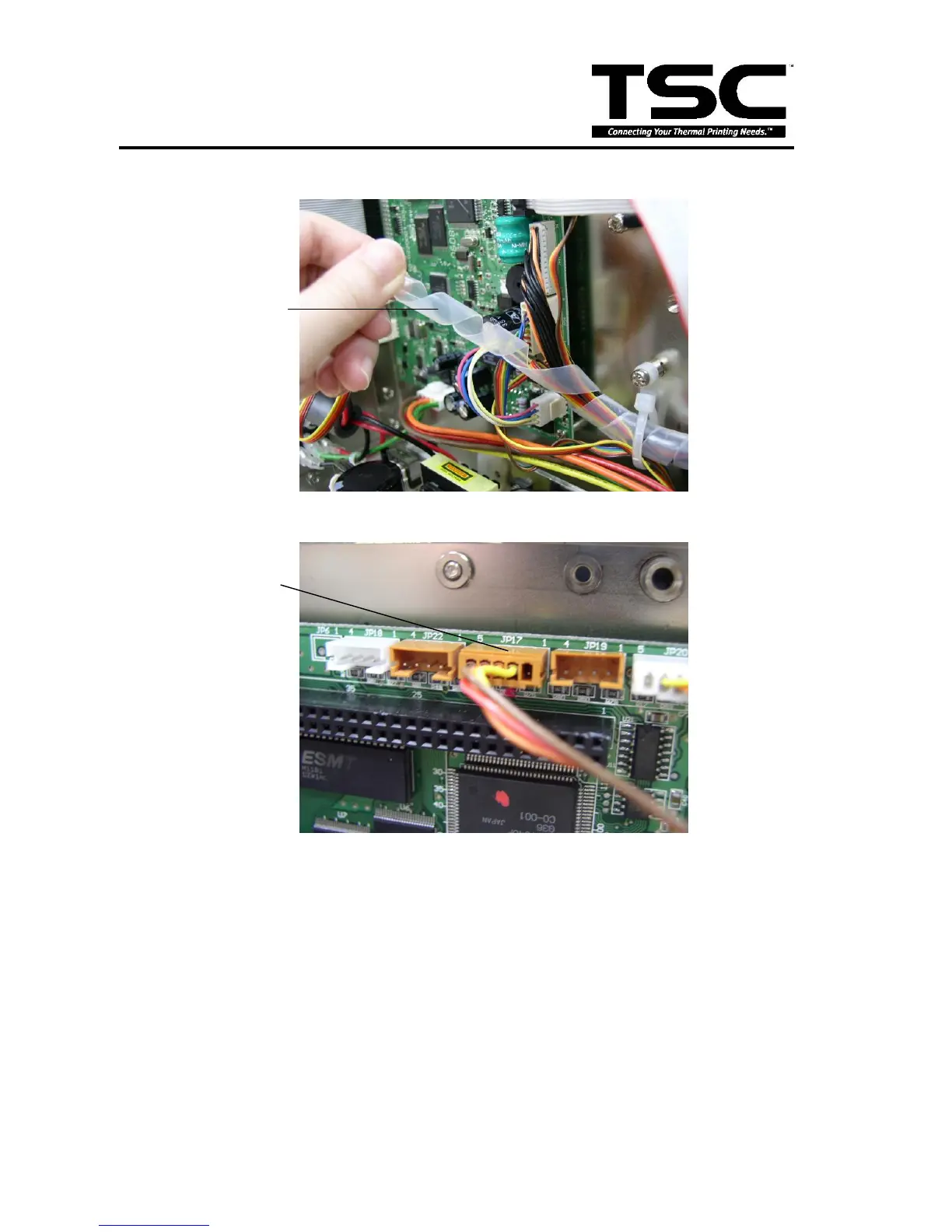

3. Remove the curly plastic pipe that covers some harness on the left side plate.
4. Disconnect the JP17 connector from the main board.
5. Reassemble in the reverse procedures after replacing.
curly plastic
pipe
JP17
