TTP-246M/344M Bar Code Printer
Service Manual

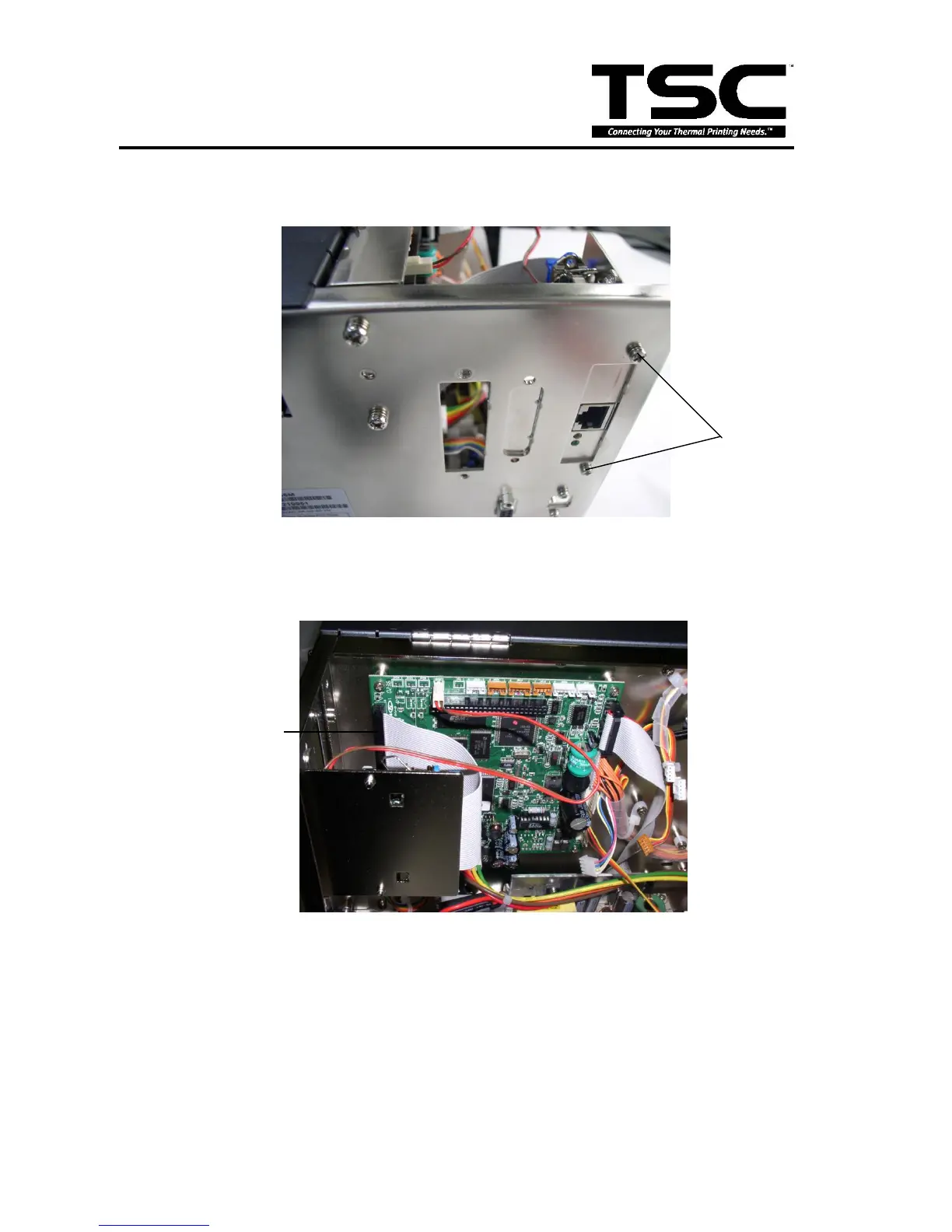

3. Install the Internal Print Server Module, and screw the 2 screws to connect the
Internal Print Server Module onto the back plate.
4. Remove the centronic harness on PCB JP12 connector. Connect internal print
server centronics harness to main PCB JP12.
5. Connect the 2-Pin white connector to location JP37 on the main board.
Screws
Internal print
server harness
